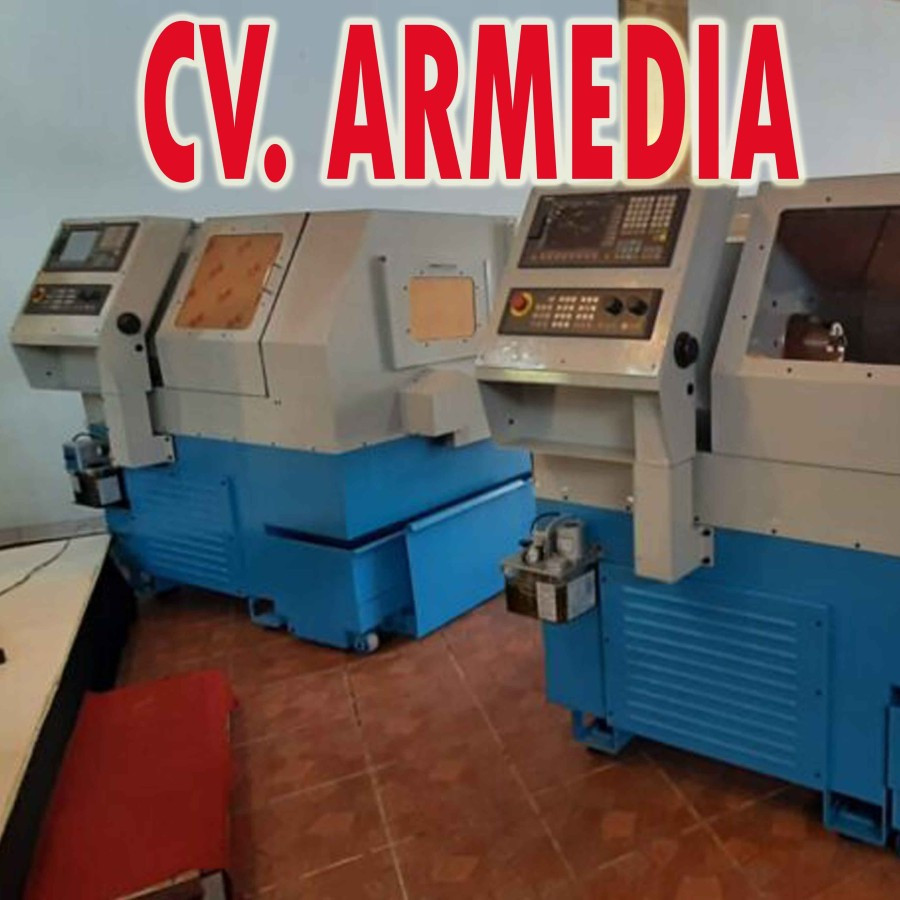

CNC Lathe Machine Leanturn LT 300-100
Spesifikasi Produk
| SKU | |
| Garansi | 1Tahun |
| Dimensi | 155cm x 155cm x 155cm |
| Berat | 200g |
| Produk | Non-UMKM |
| Buatan | Dalam Negri |
| KBKI | 4421301001 |
| Sertifikat TKDN | |
| TKDN | 0.00% |
| BMP | 0.00% |
| TKDN + BMP | 0% |
Deskripsi
CNC Lathe Machine Leanturn LT 300-100 Capacity - Swing Over (z Axis Cover) Dia : 380 mm - Swing over cross slide dia : 120 mm - Max turning dia : 100 mm - Max bar capacity : 25 mm Spindle - Spindle Spindle nose Din 55026 : A 2-4 - Spindle speed : 50 - 4000 rpm - Spindle through bore dia. : 38 mm Work Holding - Chuck Type : Manual Chuck - Chuck Size : dia 130 mm Travel - X axis travel : 200 mm - Z axis travel : 280 mm Feed rate - Rapid traverse X axis : 20 m/min - Rapid traverse Y axis : 25 m/min - Feed axis motor : 3 NM Servo motor Tooling - Tooling Arangement : Turret - BTP 50 - Tool size : 16 x 16 mm - Booring bar size : 25 mm Machine Size - Machine height : 1540 mm - Floor space : 1550 x 1550 mm - Machine weight : 1300 kg Distance between centre 320mm positioning /resolution 0.0005mm/0.001mm repeatability +/-0.01mm Spindle motor capacity 4KW (5,36 HP) C Axis
