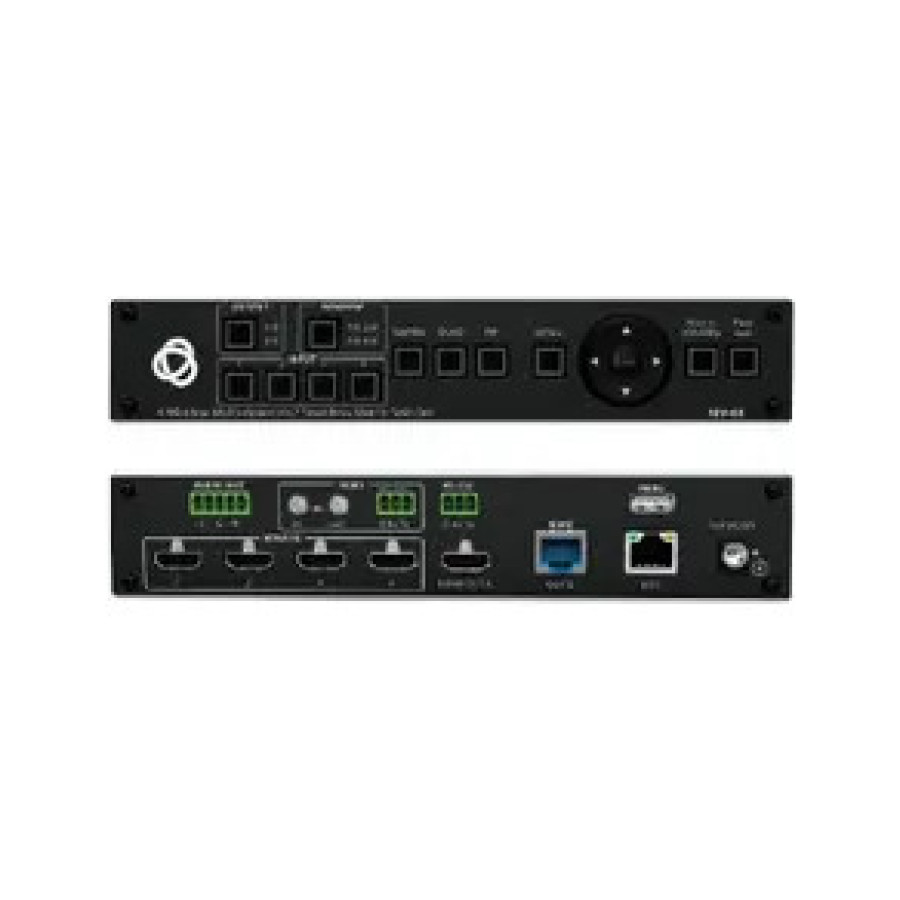

KRAMER HDMI Matrix Switcher [MV-4X]

Spesifikasi Produk

Deskripsi

Inputs: 4 HDMI: On a female HDMI connector | Outputs: 1 HDMI: On a female HDMI connector, 1 HDBT: On an RJ–45 connector, 1 Balanced Stereo Audio: On a 5–pin terminal block | Ports: 1 IR IN: On an RCA connector for IR tunneling, 1 IR out: On an RCA connector for IR tunneling, 1 RS-232: On a 3–pin terminal block for RS–232 tunneling, 1 RS-232: On a 3–pin terminal block for device control, Ethernet: On an RJ–45 port, 1 USB: On a type A USB port | Max Bandwidth: 18Gbps (6Gbps per graphic channel) | Max Resolution: HDMI: 4K@60Hz (4:4:4) | Compliance: HDMI 2.0 and HDCP 2.3 | Analog Audio: Max Vrms Level: 15dBu, Impedance: 500Ω, Frequency Response: 20Hz — 20kHz @ +/–0.3dB, S/N Ratio: >–88dB, 20Hz — 20kHz, at unity gain (unweighted), THD + Noise: <0.003%, 20 Hz — 20 kHz, at unity gain | Power Consumption: 12V DC, 1.9A | Power Source: 12V DC, 5A
