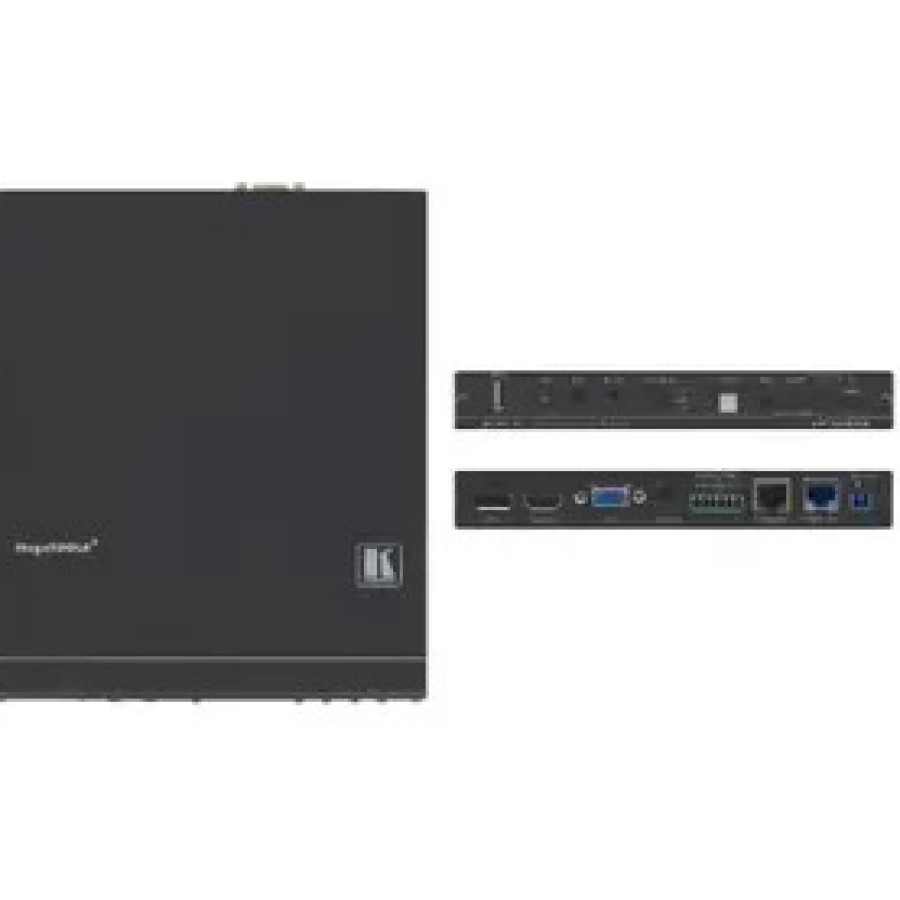

KRAMER DisplayPort, HDMI, & VGA Auto Switcher [VP-428H2]

Spesifikasi Produk

Deskripsi

Inputs: 1 DP: On a Display Port connector, 1 HDMI : On a female HDMI connector, 1 PC: On a 15–pin HD connector, 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack, 1 IR: On a 3.5mm mini jack | Outputs: HDBaseT: On an RJ–45 port, 1 IR: On a 3.5mm mini jack | Ports: 1 Ethernet: On an RJ–45 female connector for port tunneling, 1 USB: On a female USB–A connector, 1 DATA RS-232: On a 3–pin terminal block for serial link extension, 1 CTRL RS-232: On a 3–pin terminal block for device control | Max Data Rate: 10.2Gbps (3.4Gbps per graphic channel) | Max. Input Resolution: 4K@60Hz (4:4:4) | Max. Output Resolution: 4K@60Hz (4:2:0) | Standards Compliance Support: HDCP 2.2 and DP 1.2A. Supports 4K60, CEC, xvYCC color (on input), Dolby TureHD/DTS–HD Master Audio as specified in HDMI 2.0 | Switching Time Between Inputs: 2 to 3 seconds | Video Latency: 2 to 3 frames | Power Source: 48V DC, 1.36A | Power consumption: 48V DC, 410mA
