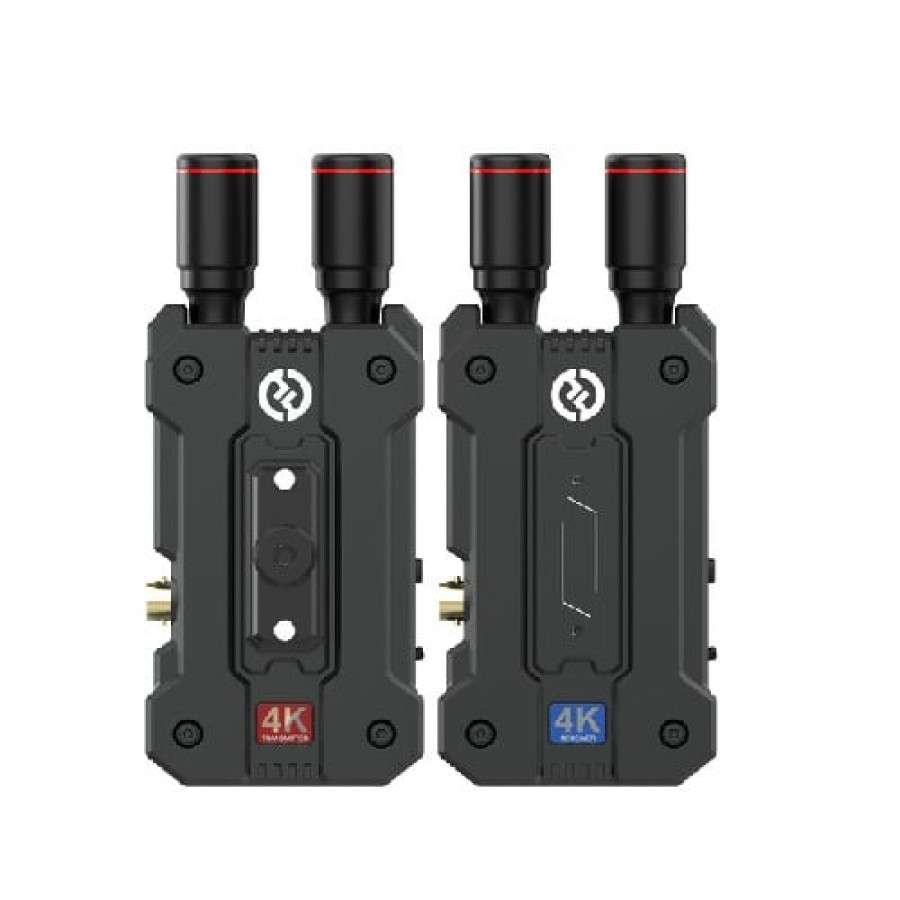

HOLLYLAND Video Transmitter UHD 450ft Wireless Transmission System [Mars 4K]

Spesifikasi Produk

Deskripsi

Transmitter: Interface: Antenna (RP-SMA male), HDMI 1.4 b input (Type-A female), 3G-SDI input, DC input (2.0mm core sccket), USB Type-C (USB 2.0 OTG); Power supply: DC input: 6V–16V, USB Type-C: 5V/2.5A, (not supporting the QC and PD protocols), NP-F battery: 6.8V–8.4V; Power consumption: <8.5W (typical); Operating frequency: 5.1GHz–5.8GHz; Modulation mode: 802.11n; TX power: 21dBm (max.) | Receiver: Interface: Antenna (RP-SMA male), HDMI 1.4 b output (Type-A female), 3G-SDI output, DC input (2.0mm core sccket), USB Type-C (USB 2.0 OTG); Power supply: DC input: 6V–16V, USB Type-C: 5V/2.5A, (not supporting the QC and PD protocols), NP-F battery: 6.8V–8.4V; Power consumption: <5W (typical); Operating frequency: 5.1GHz–5.8GHz; Modulation mode: 802.11n; TX power: 21dBm (max.); RX sensitivity: –90dBm | Bit rate: 8Mbps–20Mbps | Latency: 0.06s (test data when 1080p60 signals are transmitted in a laboratory) | Range: 450ft (150m) (test data in an open, interference-free outdoor environment) | Bandwidth: 20MHz | Audio format: 2 audio channels for the 3G-SDI and 8 audio channels for the HDMI 1.4b | Operating temperature: –10℃ to 60℃ | Storage temperature: –40℃ to 60℃ | ESD protection: Contact discharge: ±6kV; air discharge: ±8kV (test data)
