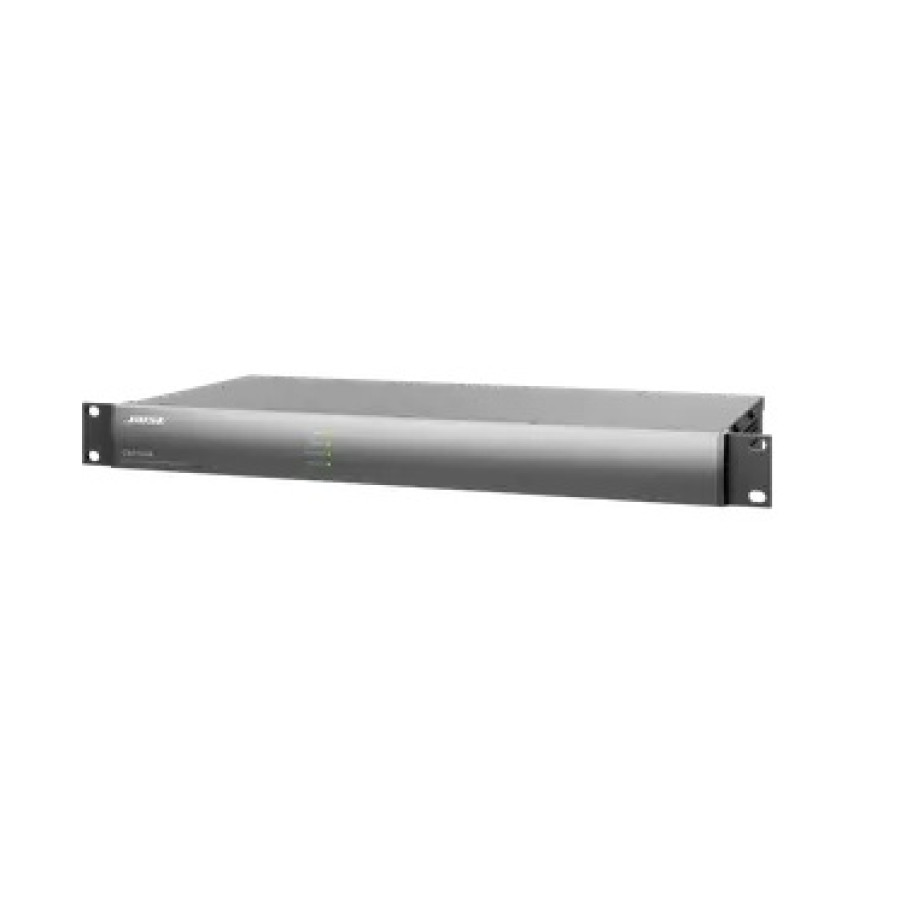

BOSE CSP-1248 Commercial Sound Processor [808456-2110]

Spesifikasi Produk

Deskripsi

Channel Separation (Crosstalk): < -105 dB at +4 dBu, 1 kHz input signal | Frequency Response: 20 Hz – 20 kHz (+0.3 dB/-0.5 dB) | Dynamic Range: > 115 dB, A-weighted, 20 Hz – 20 kHz, analog through | THD+N: < 0.01% at +4 dBu (A-weighted, 20 Hz – 20 kHz) | Input Channels: 12 (4 unbalanced, summed-mono + 8 balanced, mic/line) | Equivalent Input Noise: < -119 dBu at 64 dB gain (150 Ω input, 22 Hz – 20 kHz) | Input Impedance: 12 kΩ at 1 kHz, with or without phantom power | Phantom Power: 48 V, selectable per input, open circuit, 10 mA maximum per channel, 80 mA maximum across all channels | Sensitivity Options: -70 dBu, -60 dBu, -50 dBu, 0 dBu, +4 dBu, -10 dBV, with selectable phantom power | Maximum Input Level: +24 dBu at 0 dB gain (20 Hz – 20 kHz, THD+N < 0.3%) | Maximum Output Level: +24 dBu (22 Hz – 20 kHz, THD+N < 0.3%) | Output Impedance: 66 Ω | Inputs (Control): (8) digital, 9-pin Euroblock, 3.81 mm / (1) digital, 2-pin Euroblock, 3.81 mm (mute) | Outputs (Control): (1) digital, 2-pin Euroblock, 3.81 mm, detachable | AC Power Consumption: < 30 W typical, over all mains voltages (power supply maximum < 45 W) | Power Dissipation: 22 W (75 BTU/hr, 19 kcal/hr) | A/D and D/A Converters: 48 kHz / 24-bit | Audio Latency: 900 μs, analog input to analog output | Colors: Black | Warranty: 5 years
