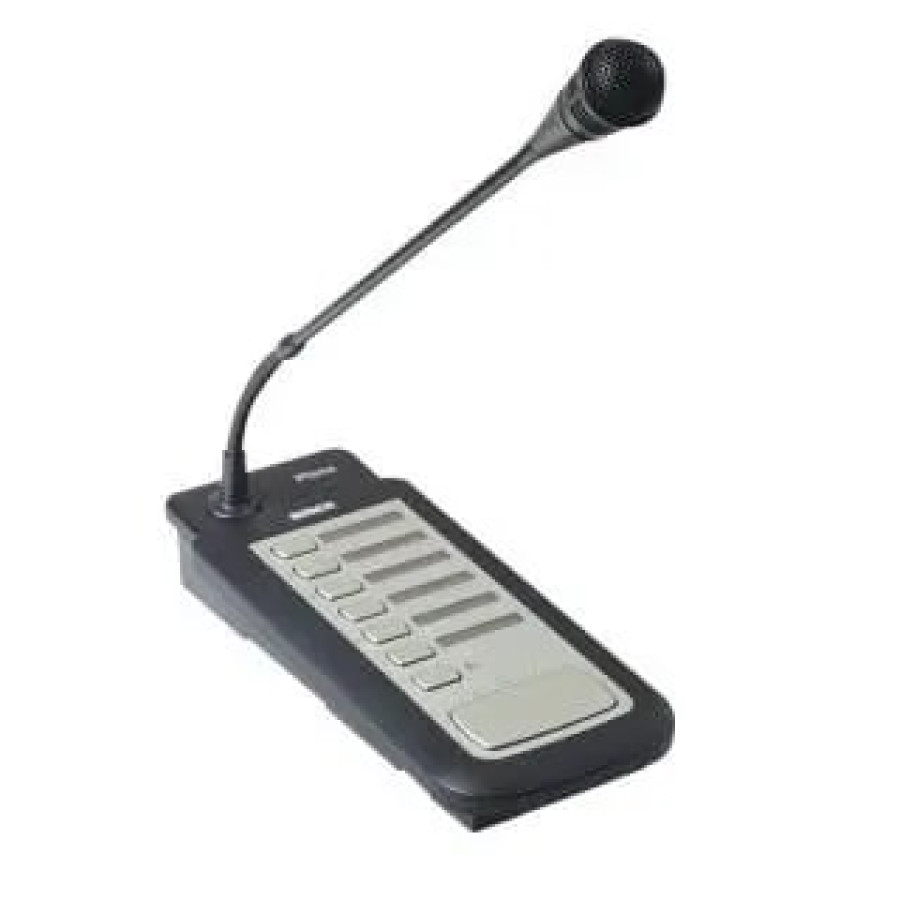

BOSCH Call Station for PLN-6AIO240, 6-zone [PLN-6CS]

Spesifikasi Produk

Deskripsi

Voltage : 24 Vdc (24 Vdc supplied by PLN‑6AIO240) | Current consumption : <50 mA | Nominal acoustic sensitivity : 85 dB SPL @ 1 kHz (gain preset 0 dB) | Nominal output level : 1 V | Input sound level (max.) : 110 dB SPL | Limiter threshold : 1 V | Compression ratio limiter : 1:20 | Distortion : <2% (maximum input) | Input noise level (equiv.) : 25 dBA SPL | Frequency response : 100 Hz to 14 kHz +/-6 dB | Speech filter : -3dB @ 315 Hz, high-pass, 6 dB/oct | Output impedance : 200 ohm | Chimes : 1-, 2- or 4-tone chime selected on Call Station | Mounting : Tabletop | Color : Charcoal with silver | Stem length with microphone : 390 mm (15.35 in) | Connection : 2 x RJ45, Cat‑5, max. length 600 m | Operating temperature : -10ºC to +45ºC (14ºF to +113ºF).
