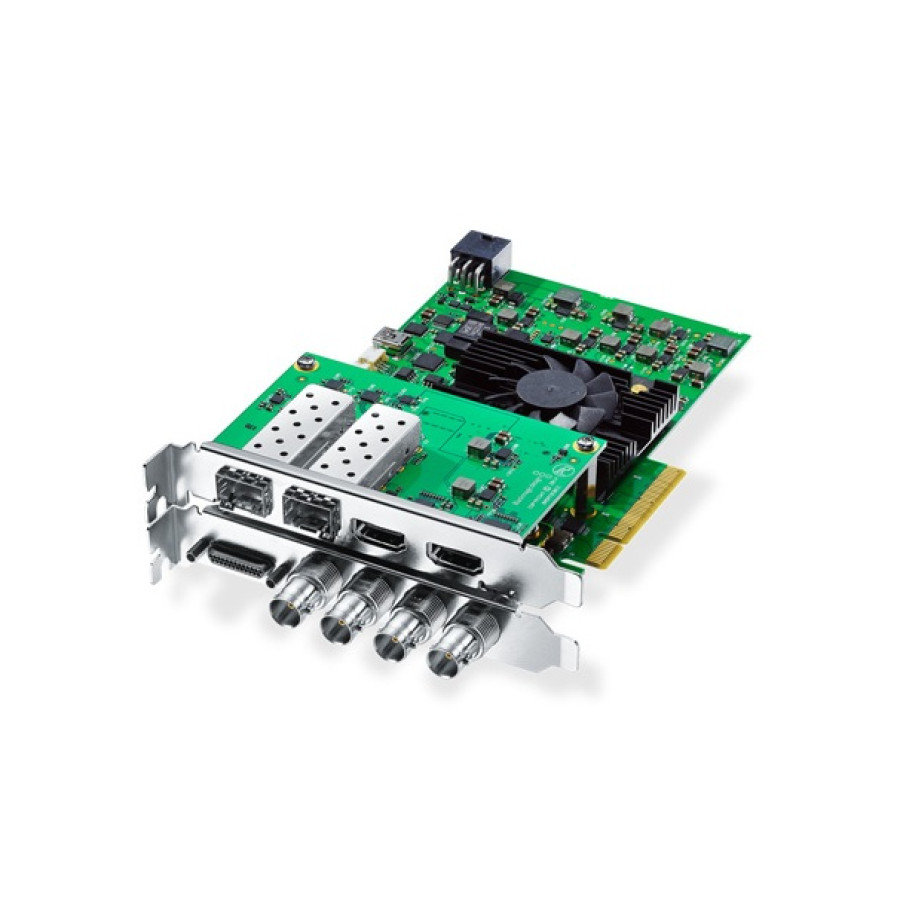

BLACKMAGICDESIGN DeckLink 4K Extreme 12G

Spesifikasi Produk

Deskripsi

Connections: SDI Video Inputs: 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable; SDI Video Outputs: 2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable; Analog Video Inputs: 1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD; Analog Video Outputs: 1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD; Analog Audio Inputs: 2 Channels of professional balanced analog audio via XLR connectors; Analog Audio Outputs: 2 Channels of professional balanced analog audio via XLR connectors; Optical Fiber Inputs/Outputs (Optional): 2 x 12Gb/s Optical Fiber; AES/EBU Audio Inputs: 2 Channels unbalanced with sample rate converter; AES/EBU Audio Outputs: 2 Channels unbalanced; SDI Audio Inputs: 16 Channels embedded in SD/HD/2K/4K; SDI Audio Outputs: 16 Channels embedded in SD/HD/2K/4K; HDMI Video Inputs: HDMI type A connector with support for 2160p60; HDMI Video Outputs: HDMI type A connector with support for 2160p60; HDMI Audio Inputs: 8 Channels embedded in SD/HD/4K; HDMI Audio Outputs: 8 Channels embedded in SD/HD/4K; Sync Input: Tri-Sync or Black Burst; Device Control: Sony compatible RS422 deck control port. Serial ports TxRx direction reversible under software control; Computer Interface: PCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots with HDMI or SDI mezzanine card | SD Video Standards: 525i59.94 NTSC, 625i50 PAL; HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95*, 1080p48*, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60 | Operating Systems: Mac 14.0 Sonoma, Mac 15.0 Sequoia or later, Windows 10, 64-bit, Windows 11, Linux | Power Consumption: 30 W
