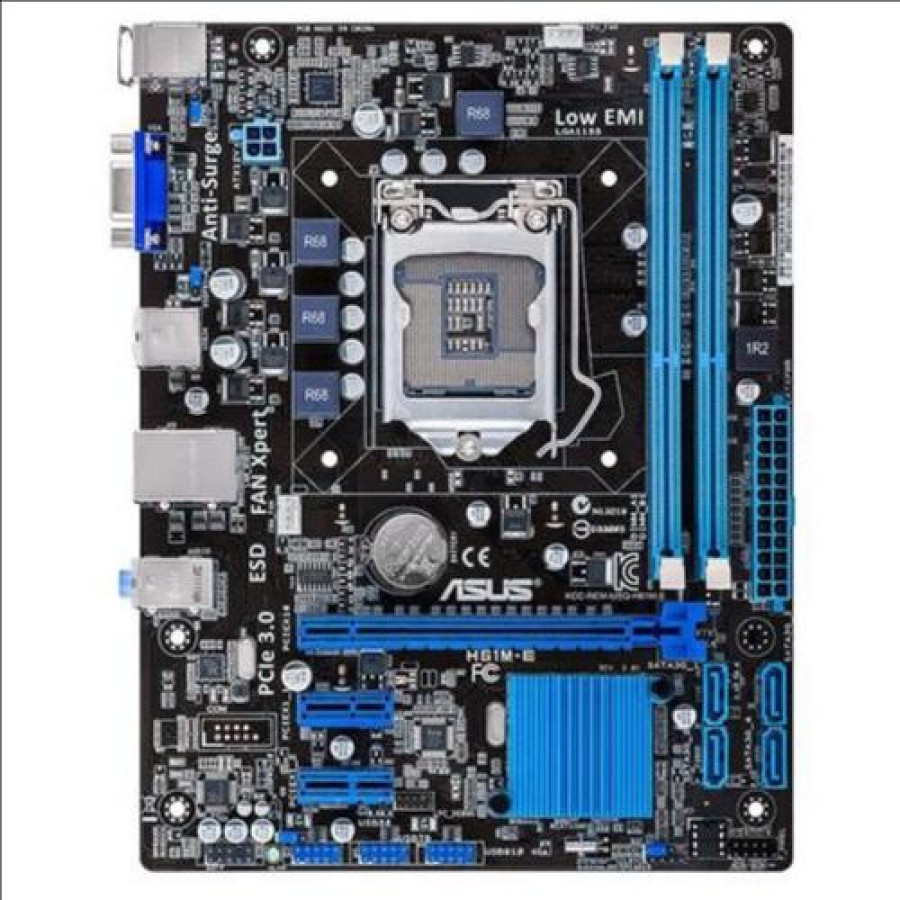

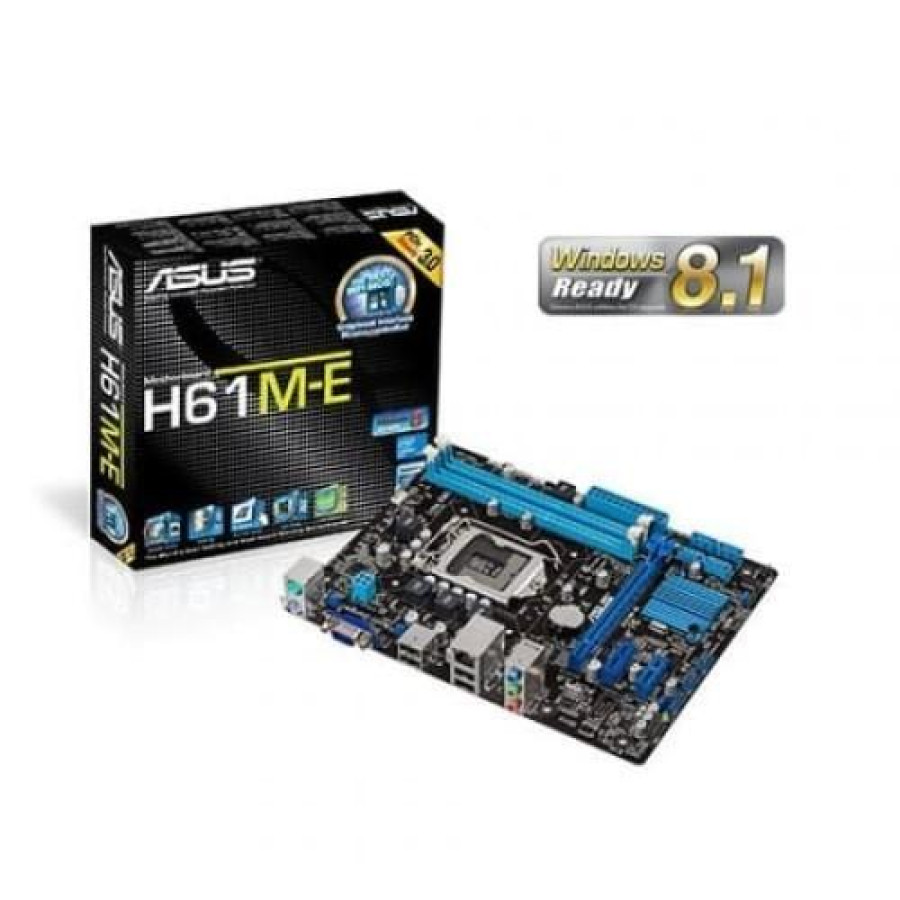

Motherboard H61M-E
Spesifikasi Produk
| SKU | |
| Garansi | 1 Tahun |
| Dimensi | 50cm x 50cm x 40cm |
| Berat | 100g |
| Produk | Non-UMKM |
| Buatan | Luar Negri |
| KBKI | - |
| Sertifikat TKDN | |
| TKDN | 0.00% |
| BMP | 0.00% |
| TKDN + BMP | 0% |
Deskripsi
Spesifikasi: Technical Detail Form Factor Micro ATX Chipset North Bridge Intel H61 Integrated Graphics Yes Maximum RAM 16 GB Native Memory Frequency 1333, 1600 MHz Overclocked Memory Frequency 1866, 2000, 2133, 2200, MHz Audio Chipset Realtek ALC887 Audio Channels 8 LAN Chipset Realtek 8111F LAN Speed 10 / 100 / 1000 Mbps Internal I/O 1. 1 x 24-pin EATX main power connector 2. 1 x 4-pin ATX 12V power connector 3. 4 x SATA 3Gb / s connectors 4. 1 x CPU fan header 5. 1 x system fan header 6. 1 x front panel connectors 7. 1 x front panel audio connectors 8. 3 x USB 2.0 / 1.1 connectors 9. 1 x parallel port header 10. 1 x serial port header 11. 1 x clearing CMOS jumper Rear I/O 1. 1 x PS / 2 keyboard port 2. 1 x PS / 2 mouse port 3. 1 x D-Sub port 4. 4 x USB 2.0 5. 1 x RJ-45 port 6. 3 x audio jacks RAM Type DDR3 RAM Slot 2 Slot(s) PCIe x16 Slots 1 Slot SATA Ports 4 Port(s) Storage Ports SATA 2 Port(s) Audio Ports 3 Port(s) LAN Ports 1 Port(s) Total PCIe Slots 2 Slot(s) RAM Architechture Dual Channel Socket Type LGA 1155
