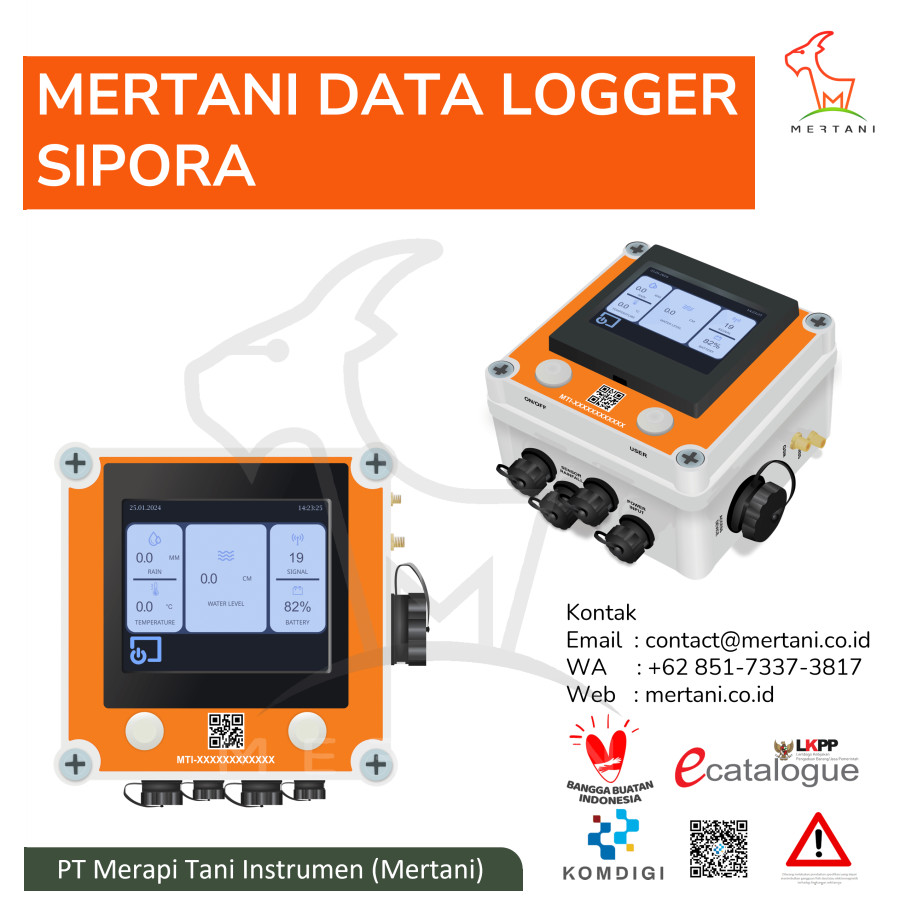

MERTANI DATA LOGGER SIPORA (With Solar Charge & Antenna)
Spesifikasi Produk
| SKU | |
| Garansi | Garansi 1 Tahun |
| Dimensi | 30cm x 30cm x 30cm |
| Berat | 5kg |
| Produk | UMKM |
| Buatan | Dalam Negri |
| KBKI | 4825101999 |
| Sertifikat TKDN | https://tkdn.kemenperin.go.id/sertifikat_ik.php?id=VFMFNBduFGbh6aSrJ9Dk6LXYP5eBnVc9lomeXGSkktg, |
| TKDN | 40.00% |
| BMP | 0.00% |
| TKDN + BMP | 40% |
Deskripsi
Data Logger telah memenunuhi Persyaratan Sertifikasi Alat Telekomunikasi dan/atau Perangkat Telekomunikasi yang ditetapkan oleh Kementrian Komunikasi dan Digital (108070/DJID/2025) Data Logger • Industrial grade Ultra-LowPower MCU based on Cortex M4+ • Input digital sensor RS485 (Modbus),I2C, RS232, Serial TTL, one wire.Under development: SDI12 • Main material ABS • Dimension Sipora 15x14x9 cm • Operates from 2.7 V up to 5.5V • Operational temperature 0°C to +85°C • Internal memory 16 MB • Extended industrial memory up to 256 MB • Weather-resistant Connectivity • GSM (2G, 3G, and 4G) • WiFi and Bluetooth Low Energy (BLE) • LoRa 920-923 MHz • GPS/ GLONASS/GALILEO Battery • Internal battery up to 6.000 mAh • Solar panel 20-50 WP • External power supply DC 4.1 V Monitoring • Realtime monitoring • Data transmission interval (5 minutes,10 minutes, 15 minutes, 30 minutes, 1 hour,2 hours, and so on) Numbers of Sensor Port • 3 sensors(default) • 10 sensors (extended) LCD Touchscreen (Sipora) • Interval and calibration setting • Graphic or text display • HMI LCD Display Colored TFT Industrial with Touchscreen Include Sistem Solar Charge Controller (MPPT & Buck Boost) Include Antena: Outdoor GSM Antena & GPS Antena
