Spesifikasi Produk
Deskripsi

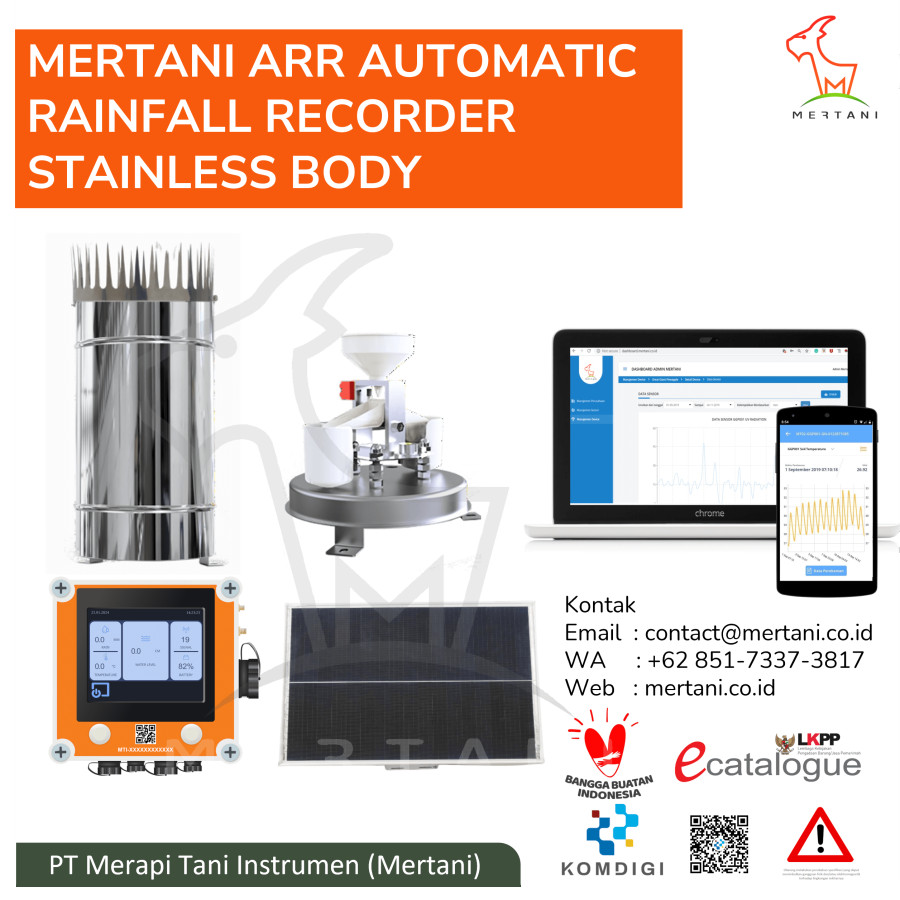

Data Logger IoT with HMI LCD TKDN 40%, Rainfall Tipping Bucket Stainless Body Sensor 0,2mm, Solar Panel, Solar Charge Controller, Antenna GPS & GSM, Enclosure Panel Box & Kerangkeng, Dudukan Perangkat, Garansi 1 tahun, Jaminan Ketersediaan Suku Cadang 5 tahun, Software Data Monitoring Via Web dan App Android, Open API Acces
Data Logger telah memenunuhi Persyaratan Sertifikasi Alat Telekomunikasi dan/atau Perangkat Telekomunikasi yang ditetapkan oleh Kementrian Komunikasi dan Digital (108070/DJID/2025)
Data Logger :
Industrial grade Ultra-Low Power MCU based on Cortex M4+
Input digital sensor RS485 (Modbus), I2C, RS232, Serial TTL, one wire. SDI12
Main material ABS
Operates from 2.7 V up to 5.5V
Operational temperature 0°C to +85°C
HMI LCD Display Colored TFT Industrial with Touchscreen
Power Supply
- Solar Panel 50 WP
- Solar Charger Controller (MPPT)
- Deep Cycle VRLA Battery 12V 18Ah
Antena GPS
-Center frequency: 1575.42/1602MHz
-Gain: 28+-2dB
-Cable: RG174
-Supply voltage: 3~5V DC
Antena GSM
-For 2G dan 4G LTE
-Weight 200 Gram
Panel Box & Kerangkeng :
-Bahan box ABS (Acrulonitrile Butadiene Styrene)
-Bahan kerangkeng besi galvanis
-Dilengkapi dengan kunci gembok pengaman
Bangunan Instalasi / Bangunan Utama
Plat Base, Pipa Galvanis 3 φ Tinggi 1,2 - 2 meter
Biaya Software dan Pulsa
Manage Service (Annual Fee): GSM Data Plan/ Pulsa GSM,
Database IoT server, Data Storage, Software Access and Licence IoT Platform (Open API Access, Web Dashboard, and Mobile Apps)
Rainfall Sensor Stainless Body 0,2 mm :
Material Steel stainless body, aluminum alloy base
Tips material White plastic
Measuring range 0~8mm/min
Accuracy ±≤4% (≤240mm/hr);
Resolution 0.2mm
Inner diameter 200mm/8inch ±0.3%
Collection Area 314cm2
Acute angle of cutting edge 40~45°
Insect protection Steel stainless Mesh
Output Standard Pulse(Reed switch,0.2mm---5pulse/mm 0.5mm---2pulse/mm);
