Spesifikasi Produk
Deskripsi

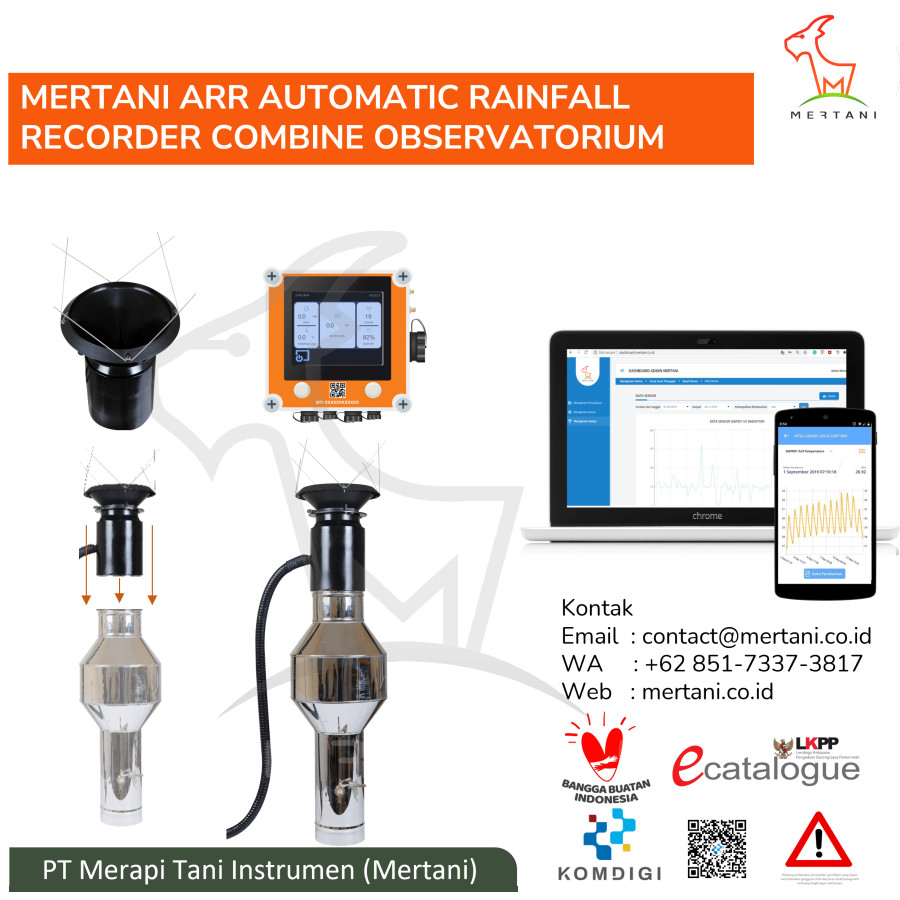

Data Logger IoT with HMI LCD TKDN 40%, Rainfall Combine Observatorium Sensor 0,2mm, Solar Panel, Solar Charge Controller, Antenna GPS & GSM, Enclosure Panel Box & Kerangkeng, Dudukan Perangkat, Garansi 1 tahun, Jaminan Ketersediaan Suku Cadang 5 tahun, Software Data Monitoring Via Web dan App Android, Open API Acces
Data Logger telah memenunuhi Persyaratan Sertifikasi Alat Telekomunikasi dan/atau Perangkat Telekomunikasi yang ditetapkan oleh Kementrian Komunikasi dan Digital (108070/DJID/2025)
Data Logger :
Industrial grade Ultra-Low Power MCU based on Cortex M4+
Input digital sensor RS485 (Modbus), I2C, RS232, Serial TTL, one wire. SDI12
Main material ABS
Operates from 2.7 V up to 5.5V
Operational temperature 0°C to +85°C
HMI LCD Display Colored TFT Industrial with Touchscreen
Power Supply
- Solar Panel 50 WP
- Solar Charger Controller (MPPT)
- Deep Cycle VRLA Battery 12V 18Ah
Antena GPS
-Center frequency: 1575.42/1602MHz
-Gain: 28+-2dB
-Cable: RG174
-Supply voltage: 3~5V DC
Antena GSM
-For 2G dan 4G LTE
-Weight 200 Gram
Panel Box & Kerangkeng :
-Bahan box ABS (Acrulonitrile Butadiene Styrene)
-Bahan kerangkeng besi galvanis
-Dilengkapi dengan kunci gembok pengaman
Bangunan Instalasi / Bangunan Utama
Plat Base, Pipa Galvanis 3 φ Tinggi 1,2 - 2 meter, Combine
Biaya Software dan Pulsa
Manage Service (Annual Fee): GSM Data Plan/ Pulsa GSM,
Database IoT server, Data Storage, Software Access and Licence IoT Platform (Open API Access, Web Dashboard, and Mobile Apps)
Rainfall Combine Observatorium 0,2 mm :
Pluviometer type Precipitation type: Liquid (Rain)
Accuracy <±1% for rain rates <100mm/hr
Stability <0.0125 mm peryear
Resolution "0.1, 0.2, 0.25 mm (0.01”)"
Measuring range Up to 600mm/hr in above freezing conditions
Operating range -40°C…80 °C
Starting threshold Resolution +0.07mm (0.0027”)
Rain orifice area "200 cm2 (Ø16.0cm,6.3”)"
Electrical Interface Magnetic reed switch
Electrical switching speed 0.25ms
Switching resistance 470 fi
Max current 10 mA
Max voltage 15 VDC
Surge protection Transient protection
Tipping bucket speed 0.13 seconds
