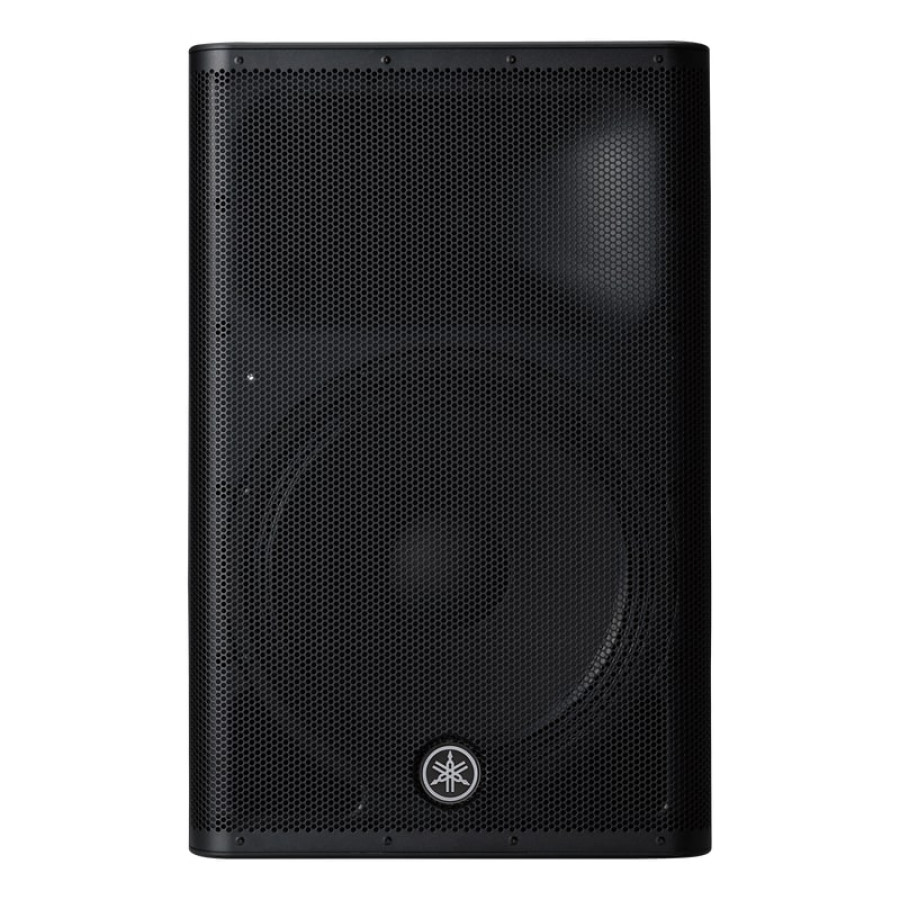

PA YAMAHA DXR15 MKII

Spesifikasi Produk

Deskripsi

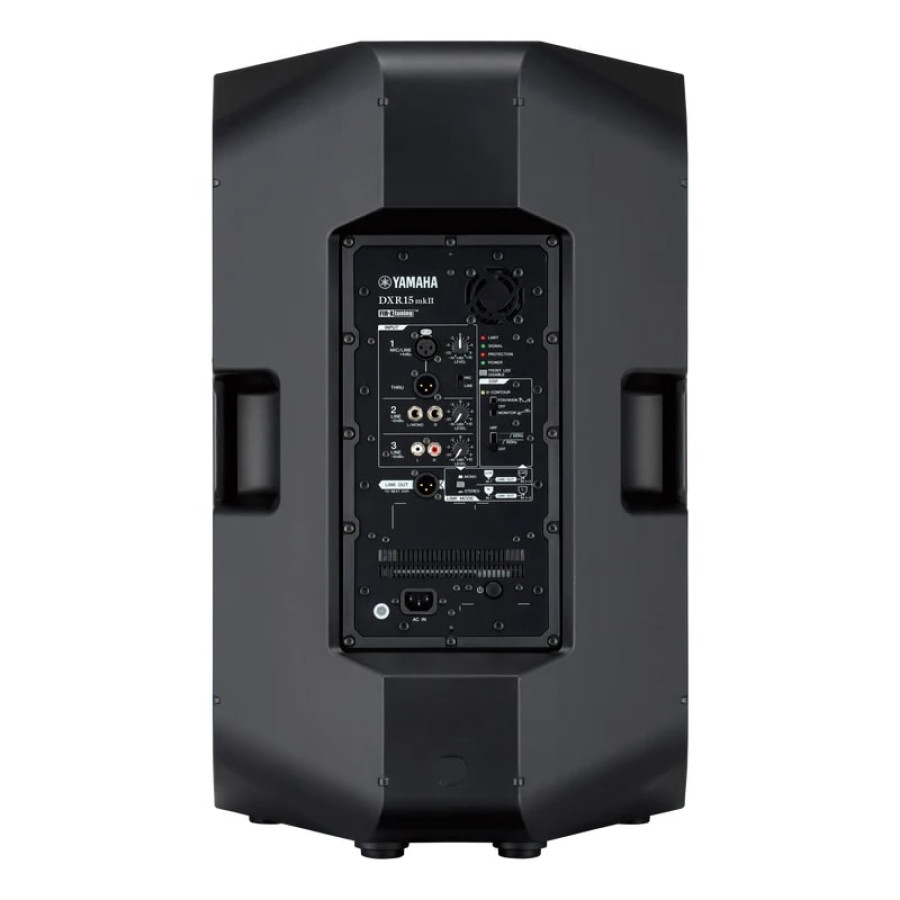

- Speaker type : 15" 2-way, Bi-amp powered speaker, Bass-reflex type - Frequency range (-10dB) : 9Hz - 20kHz - Nominal coverage : 900 (H), 600 (V) - Components : LF : Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite / HF : Diaphragm:1.75", Type: 1" throat compression driver, Magnet:Neodymium - Crossover : Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W) - Maximum output level (1m; on axis) : 134dB SPL - /O connectors : Input : XLR-3-31 x1, Input 2 : Phone x2, Input 3 : RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1 - Processors : D-CONTOUR: FOH/MAIN, MONITOR, OFF - Power requirements : 100V - 240V, 50Hz/60Hz - Power consumption : 110W - Flying and mounting hardware : op x2, Rear x1 (Fits for M10 x 18mm eyebolts) - Pole socket : 35mm with 2-way features (0 or 7 degrees)
