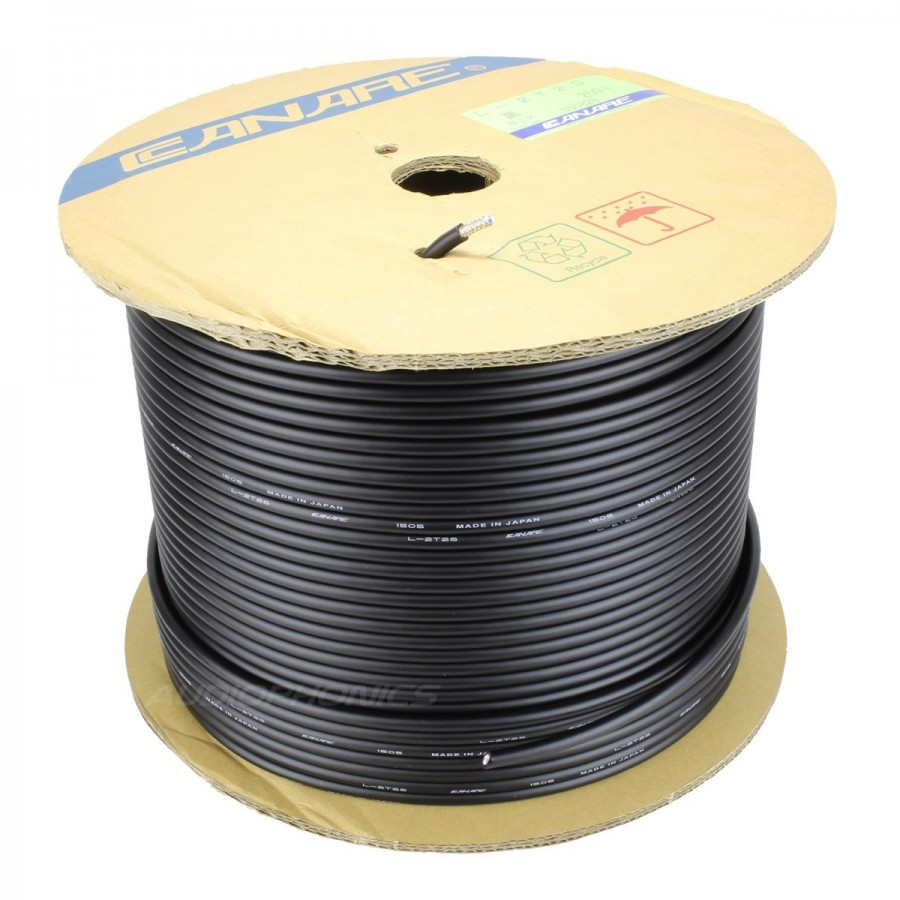

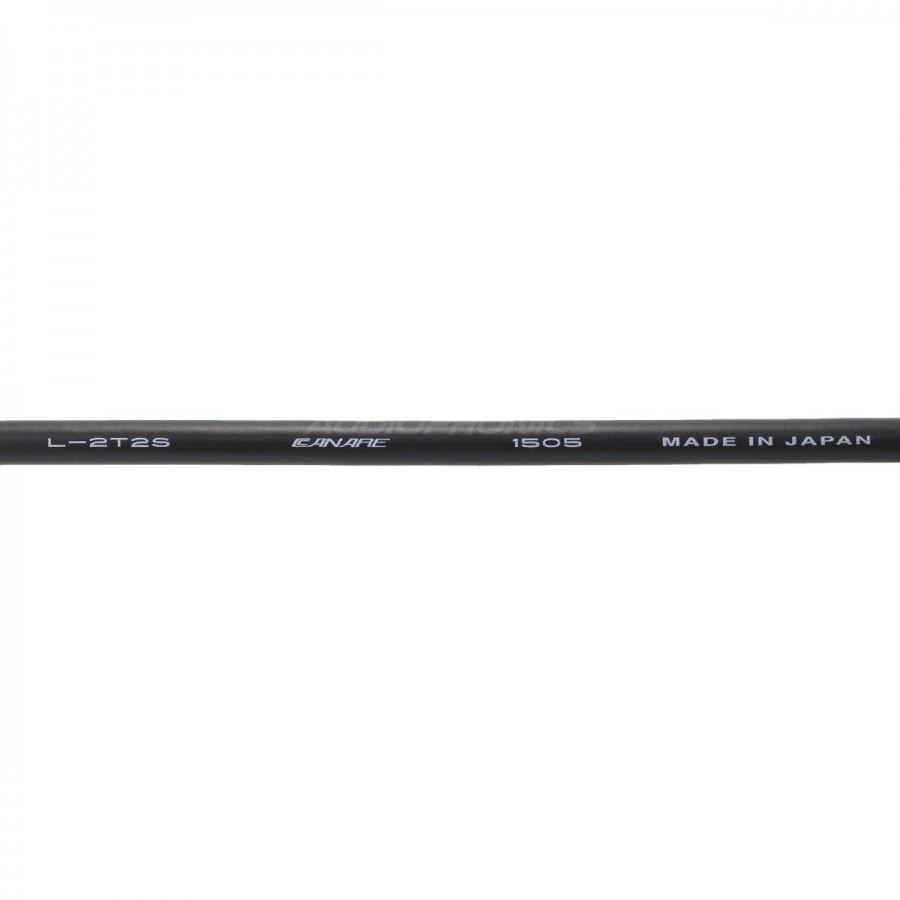

Kabel Microphone

Spesifikasi Produk

Deskripsi

- Applicatons : Microphones, portable applications, audio patch cords, and PA systems - Outer Diameter : Nominal: 0.236" (6 mm) - Thickness Jacket: 0.039" (1 mm), Insulator: 0.77" (19.7 mm) - Number of Conductors : 2 - Insulation : Type: IPE, Note: Dielectric Strength: 500 VAC / per minute Insulation Resistance: 1000 MOhms per 3' (0.91 m) - Conductor D.C.R. : Less than 19.8 Ohms / 1000' (less than 6.5 Ohms / 100 m) - Shield D.C.R : Less than 9.4 Ohms / 1000' (less than 3.1 Ohms / 100 m) - Nominal Capacitance : Between Conductors: 22 pF / ft (70 pF / m) Between Conductors & Shield: 33 pF/ ft (106 pF / m) - Nominal Impedance : 88 Ohms - Group Delay Time 1.83 ns / ft (6 ns / m) - Brittle Point : -56°F (-49°C)
