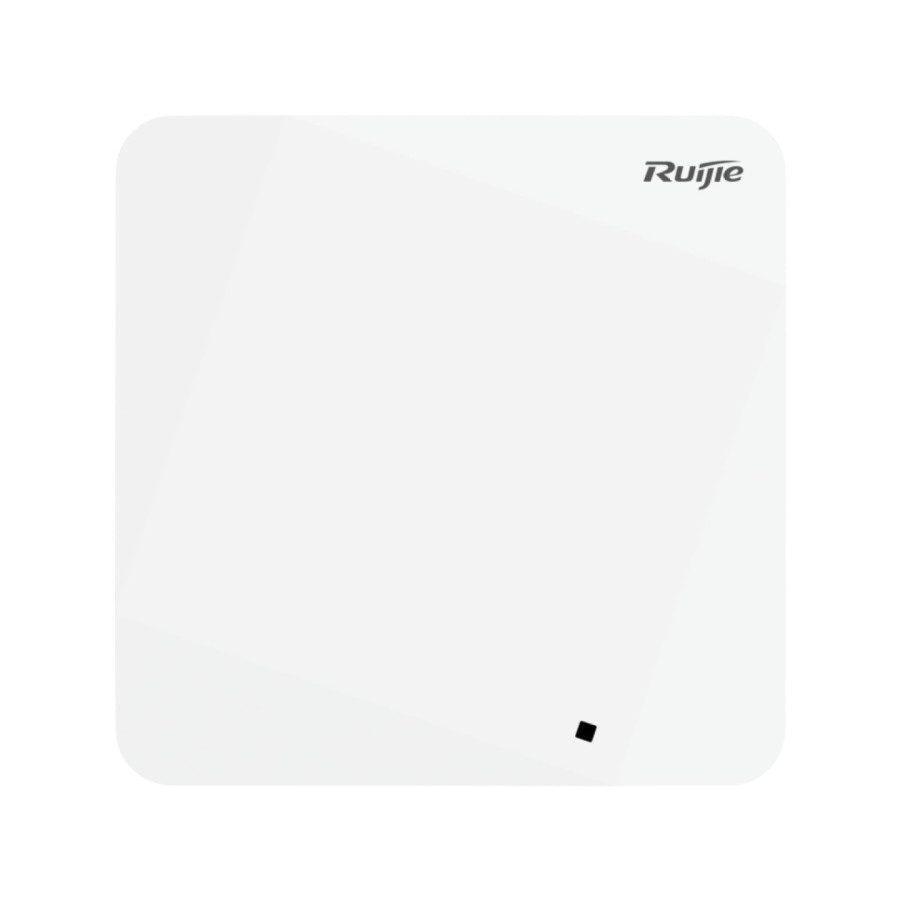

RG-AP720-L, Wi-Fi 5 Dual-Radio 1.167 Gbps Indoor AP

Spesifikasi Produk

Deskripsi

Unit dimensions(W x D x H) 194 mm x 194 mm x 37 mm (7.64 in. x 7.64 in. x 1.46 in.) Shipping dimensions(W x D x H) 463 mm x 370 mm x 240 mm (18.23 in. x 14.57 in. x 9.45 in.) Unit weight Main unit: 0.42 kg (0.93 lbs) Mounting bracket: 0.07 kg (0.15 lbs) Shipping weight 7.31 kg (16.12 lbs) Mounting Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) Lock option Kensington lock and securing latch Wi-Fi Radio RG-AP720-L Radio design Dual-radio and up to four spatial streams: ● Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO ● Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO Operating frequencies Radio 1, 802.11b/g/n: ● 2.400 GHz to 2.4835 GHz, ISM Radio 2, 802.11a/n/ac: ● 5.150 GHz to 5.250 GHz, U-NII-1 ● 5.250 GHz to 5.350 GHz, U-NII-2A ● 5.470 GHz to 5.725 GHz, U-NII-2C ● 5.725 GHz to 5.850 GHz, U-NII-3/ISM Data rates Combined peak data rate: 1.167 Gbps 2.4 GHz radio ● Two spatial stream Single User (SU) MIMO for up to 300 Mbps wireless data rate to individual 2SS HT40 802.11n client devices (maximum) ● Two spatial stream Single User (SU) MIMO for up to 144.4 Mbps wireless data rate to individual 2SS HT20 802.11n client devices (typical) 5 GHz radio ● Two spatial stream Single User (SU) MIMO for up to 867 Mbps wireless data rate to individual 2SS HT80 802.11ac client devices (typical) Data rate set The following 802.11-compliant data rates in Mbps are supported: 2.4 GHz radio ● 802.11b: 1, 2, 5.5, 11 ● 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) 5 GHz radio ● 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 ● 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40) ● 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80) Packet aggregation 802.11n/ac: A-MPDU and A-MSDU Antenna type Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas) Antenna gain 2.4 GHz: 4.3 dBi 5 GHz: 5.7 dBi Maximum transmit power 2.4 GHz radio: 26 dBm (23 dBm per chain) 5 GHz radio: 26 dBm (23 dBm per chain) Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. Thailand 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm 5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm Radio technologies 802.11b: Direct-Sequence Spread-Spectrum (DSSS) 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM) Modulation types 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM The following table lists the radio frequency performance of Wi-Fi including different frequency bands, protocols, and date rates. It is country-specific, and Ruijie Networks reserves the right of interpretation. Wi-Fi Radio Frequency Performance RG-AP720-L Frequency Band and Protocol Data Rate Maximum Transmit Power per Transmit Chain Maximum Receive Sensitivity per Receive Chain MCS0 Ports Specifications RG-AP720-L Fixed service port 1 x 10/100/1000BASE-T port ● In compliance with IEEE 802.3af standard (PoE) ● Auto MDI/MDIX crossover ● PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher) ● 802.3az EEE Fixed management port 1 x RJ45 console port (serial console port) Status LED 1 x multi-color system status LED Button 1 x Reset button ● Press the button for shorter than 2 seconds. Then the device restarts. ● Press the button for longer than 3 seconds. Then the device restores to factory settings. Power Supply and Consumption RG-AP720-L Input power supply The AP supports the following two power supply modes: ● 12 V DC/1.5 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately. ● PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE). Note: ● If both DC power and PoE are available, DC power is preferred. Overall power consumption Maximum power consumption: 12.95 W ● DC powered: 12.95 W ● PoE powered (802.3af): 12.95 W ● PoE+ powered (802.3at): 12.95 W ● PoE++ powered (802.3bt): 12.95 W ● Idle mode: 6 W Environment and Reliability RG-AP720-L Temperature Operating temperature: –10°C to +50°C (14°F to +122°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F). Humidity Operating humidity: 5% RH to 95% RH (non-condensing) Storage humidity: 5% RH to 95% RH (non-condensing) Mean Time Between Failure (MTBF)
