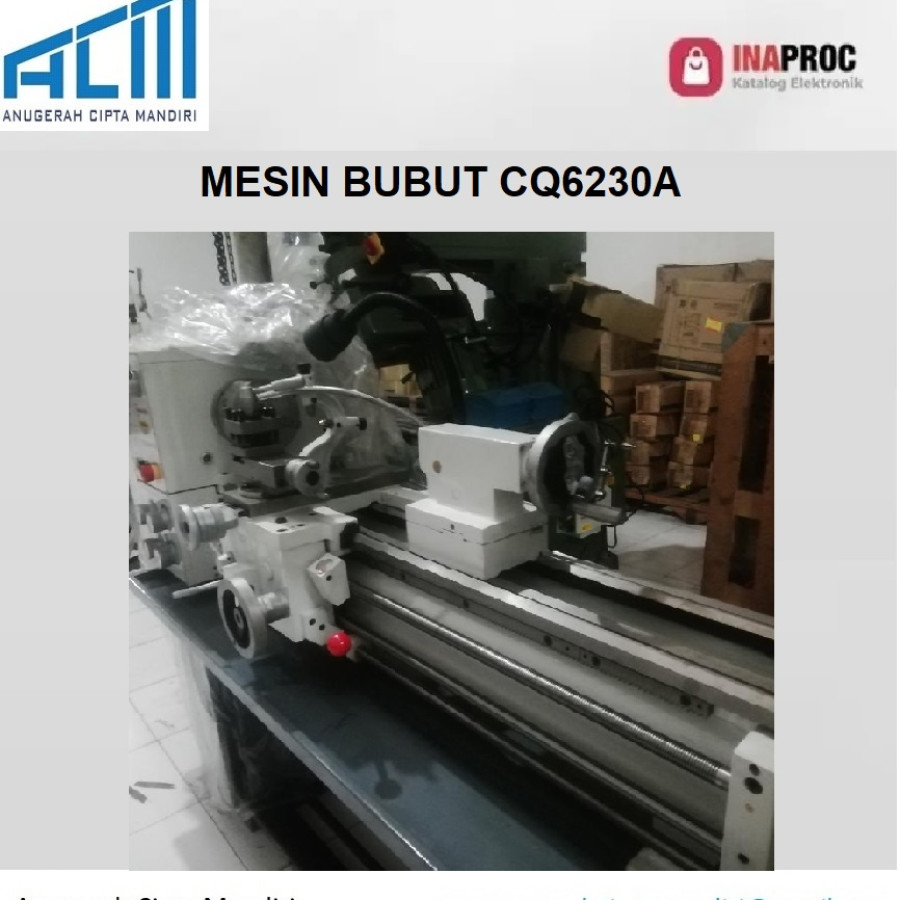

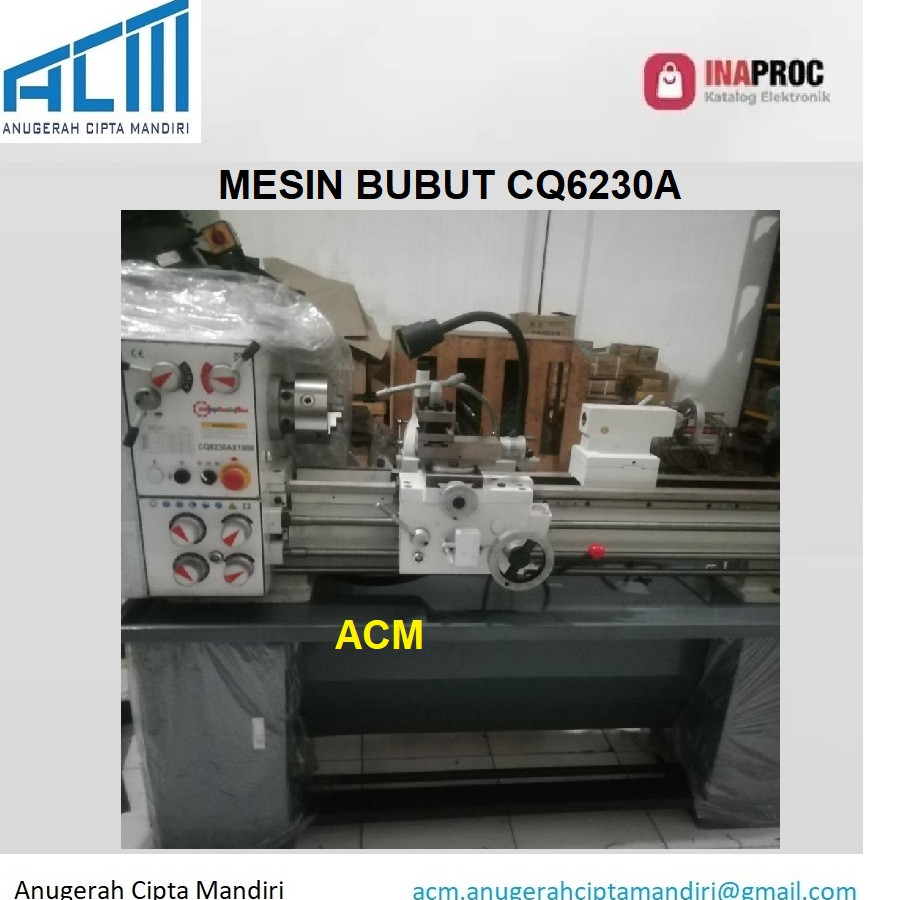

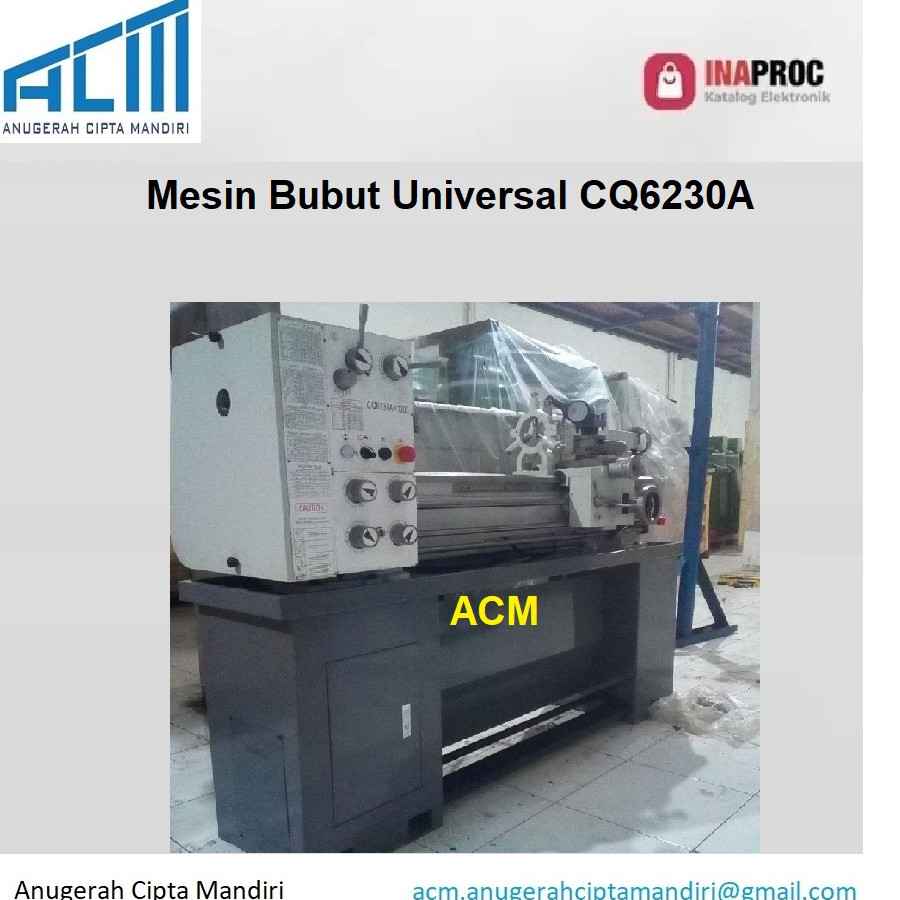

MESIN BUBUT BESI / LATHE MESIN CQ 6230A
Rp92.130.000
PPh
PPN 12%
Gratis Ongkir
Ke :
38 Kabupaten / Kota,
Lihat
Stok Produk : 4
Spesifikasi Produk
| SKU | ACMME006230 |
| Garansi | 6 BULAN |
| Dimensi | 736cm x 167cm x 117cm |
| Berat | 200kg |
| Produk | Non-UMKM |
| Buatan | Dalam Negri |
| KBKI | - |
| Sertifikat TKDN | https://tkdn.kemenperin.go.id/sertifikat.php?id=bSjKwFsWWLGUdklSbvO5HWgaoTqG1ZryQtT72e9q_xqAnEfQ64NoWb3qo2thzKnix8tvc3WtkvWurtS17Gg_mA,, |
| TKDN | 21.54% |
| BMP | 14.10% |
| TKDN + BMP | 35.64% |
Deskripsi
CQ 6230 X 914 Swing over bed : 330mm Swing over gap : 430mm Swing over carriage : 178mm Distance between centers : 914mm Spindle bore : 38mm Headstock Taper : MT5 Threads of leadscrew : 8tpi Threads imperial pitches : 60-4tpi Thread metric pitches : 0.4-7mm Cross feed range : 0.014-0.3448mm/r Longitudinal feed range : 0.0527-1.2912mm/r Top Slide Travel : 95mm Cross slide travel : 175mm Saddle travel : 800mm Tailstock travel : 100mm Talstock taper : MT3 Motor Power : 1.5HP
