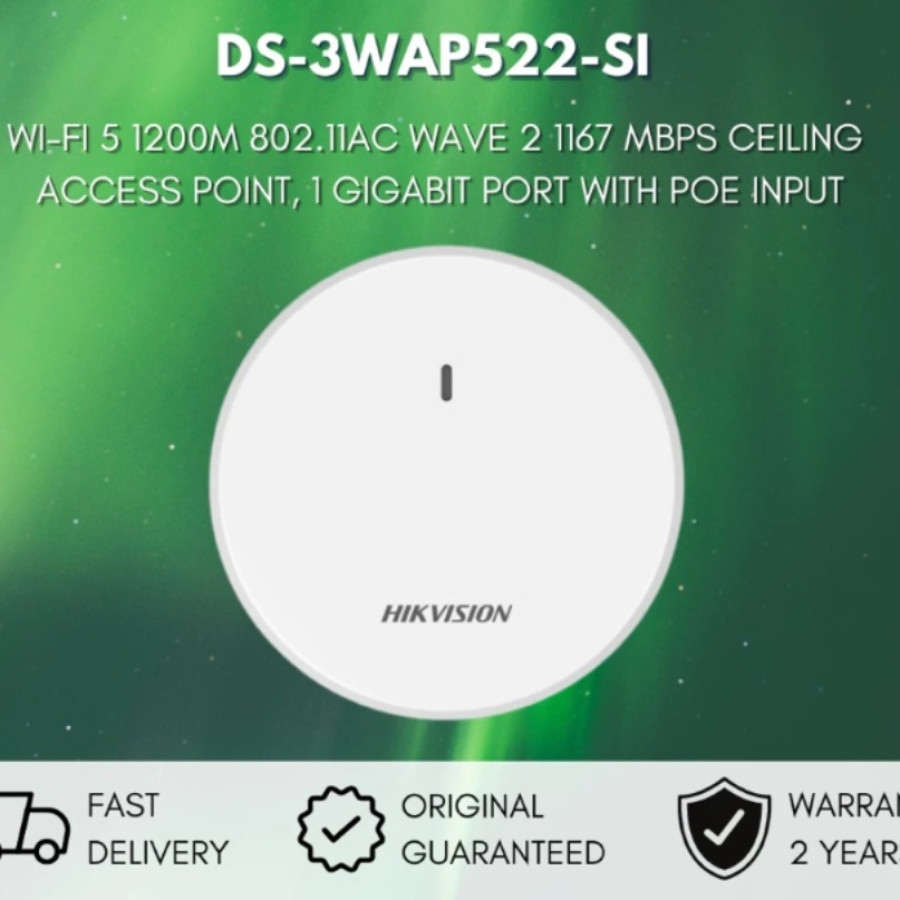

ACCESS POINT HIKVISION

Spesifikasi Produk

Deskripsi

Wi-Fi 5 1200M Celling Access Point 1 Gigabit Port with PoE Input 802.11ac Wave 2 1167 Mbps 80+ Concurrent User Connections Auto RF Optimization Support Intelligent Fast Roaming Weight: 0.4 kg (0.88 lb) Installation Mode: Desk-Mounted,Wall-Mounted,Ceiling Mounting Working Temperature: 0 °C to 40 °C (32 °F to 104 °F) Working Humidity: 5% to 95% (no condensation) Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) Storage Humidity: 5% to 95% (no condensation) Product Dimensions (W × H × D): 220 mm × 220 mm × 35 mm (8.66'' × 8.66'' × 1.37'') Packing List: 1200 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1 Power Consumption: Max. 11.35 W Maximum Number Of Clients: 256 Recommended Number Of Clients: 80 Maximum Number Of SSIDs: 8 Working Frequency Band: radio 1: 5G(11a/an/ac), radio 2: 2.4G(11b/g/gn) Wi-Fi Standards: Wi-Fi 5 Wi-Fi Speed: 2.4 G: 300 Mbps,5 G: 867 Mbps Spatial Streams: 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO Channel Width: 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/MHz Number Of Antennas: 2.4 GHz：2；5 GHz：2 Antenna Type: Built-in omnidirectional antennas Antenna Gain: 2.4 GHz: 3 dBi,5 GHz: 4 dBi Transmit Power: 20 dBm Modulation Technology: OFDM：BPSK@6/9Mbp、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps; DSSS：DBPSK@1Mbps、DQPSK@2Mbps、[email protected]/11Mbps; MIMO-OFDM （11n）：MCS 0-15; MIMO-OFDM （11ac）：MCS 0-9 WLAN Security: WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support SSID and VLAN binding,Support 802.11i Management & Maintenance: Centralized AC management Version Upgrade: upgrade on Web Interface: 1 × Gigabit RJ45 uplink port Power Supply: IEEE 802.3af/at POE,12 VDC 1.5 A LED Indicator: Yellow/green/blue for different working states, flashing mode Reset Button: Hardware Resetting Button EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017),UL (UL 60950-1) Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) Radio: EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
