Rp600.000
PPh
PPN 12%

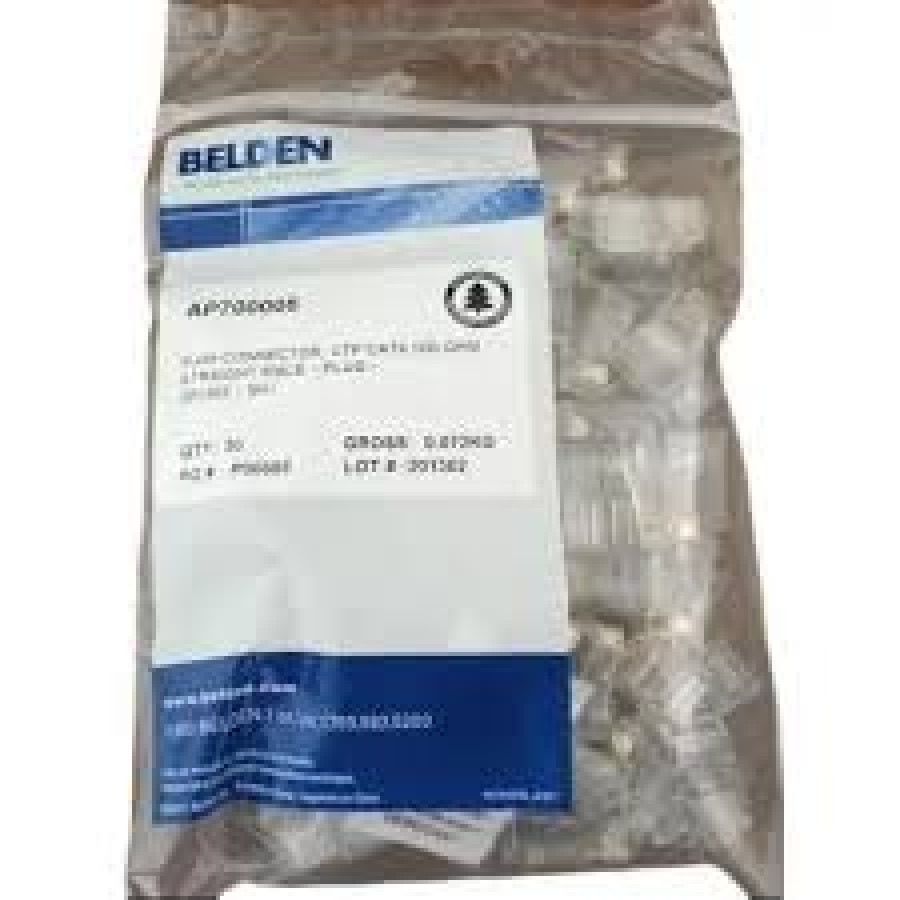

CONNECTOR RJ 45 CAT 6 BELDEN 1 PAK ISI 50 PCS
Rp600.000
PPh
PPN 12%
Gratis Ongkir
Ke :
514 Kabupaten / Kota,
Lihat
Stok Produk : 98
Spesifikasi Produk
| SKU | |
| Garansi | 1 HARI |
| Dimensi | 15cm x 15cm x 15cm |
| Berat | 30g |
| Produk | Non-UMKM |
| Buatan | Dalam Negri |
| KBKI | - |
| Sertifikat TKDN | |
| TKDN | 0.00% |
| BMP | 0.00% |
| TKDN + BMP | 0% |
Deskripsi
Spesifikasi : - Kemasan isi 50 pcs Description: RJ45-Connector, Cat6, 100 ohms, Straight male (plug) PHYSICAL CHARACTERISTICS: Plug Housing PC - Polycarbonate, UL 94V-2 rated Contact Blade Phosphor bronze plated with 50u gold over 100u nickel undercoat ELECTRICAL CHARACTERISTICS: Current Rating 1.5 A maximum Characteristic Impendence 100 ohms Insulation Resistance 100 Mohms Min Contact Resistance 20mohms Max Voltage Rating 30 VAC maximum MECHNICAL CHARACTERISTICS: Cable Retention Force 40 lbs Max Max Insertion and Withdrawal Force 22 N Humidity 10% to 90% R.H. WIRE RANGE: Conductor Diameters: 0.41mm to 0.51mm (26AWG to 24AWG) Conductor Type Solid; Stranded Insulation Diameters: 0.98mm to 1.05mm Cable Diameters: 5.0mm to 7.0mm
