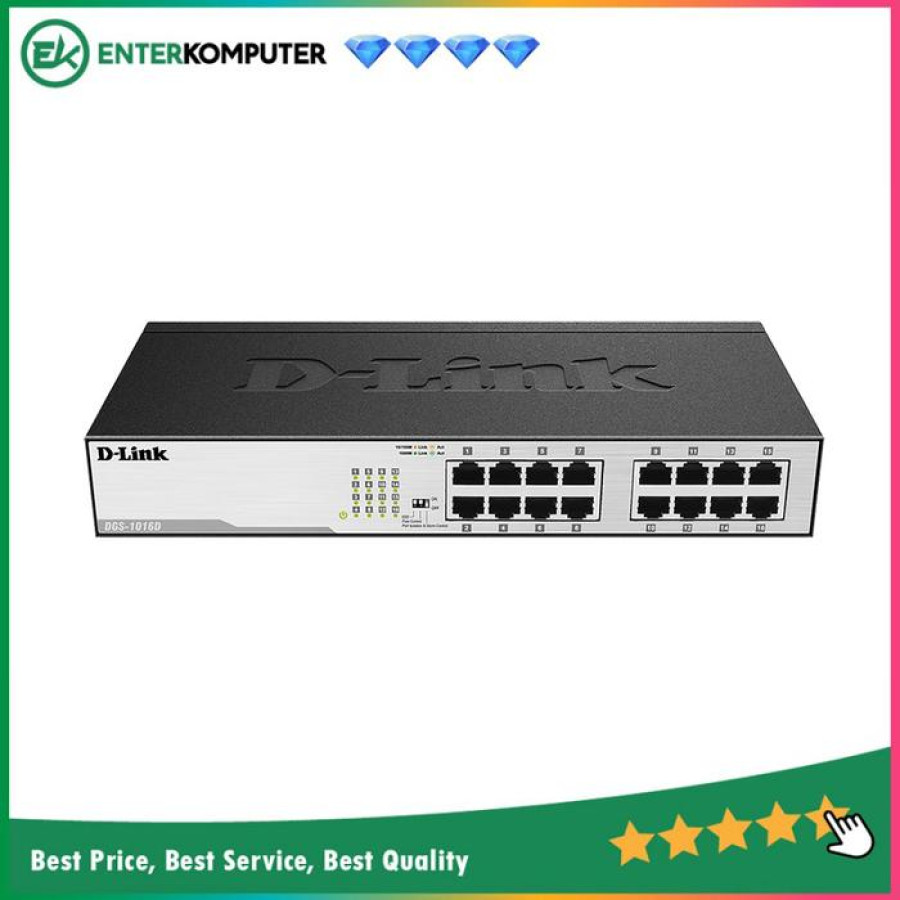

Switch Hub D-Link DGS-1016D

Spesifikasi Produk

Deskripsi

Switch Hub D-Link DGS-1016D 16 port Key FeaturesD-Link Green TechnologyPower saving by cable length detection and link statusInexpensive Gigabit solution for SOHO/SMBSilent, fanless designAuto MDI/MDI-X crossover for all portsStore-and-forward switching schemeFull/half-duplex for Ethernet/FastEthernet speedsIEEE 802.3x Flow ControlSupports 9,600Bytes Jumbo FramesSupports IEEE 802.1p QoS (4 Queues, Strict Mode)Supports Cable Diagnostics FunctionSupports D-Links unique EEE+ modeRoHS compliantPlug-and-play installationNumber of Ports16 Gigabit portsSwitching Fabric32 Gbps switching fabricStandardsIEEE 802.3 10BASE-T Ethernet (twistedpair copper)IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)ANSI/IEEE 802.3 NWay auto-negotiationIEEE 802.3x Flow ControlIEEE 802.1p QoS (4 queues, strict mode)IEEE802.3az EEEProtocolCSMA/CDData Transfer RatesEthernet:10 Mbps (half duplex)20 Mbps (full duplex)Fast Ethernet:100 Mbps (half duplex)200 Mbps (full duplex)Gigabit Ethernet:2000 Mbps (full duplex)Network Cables10BASE-T:UTP CAT 3, 4, 5/5e (100 m max.)EIA/TIA-586 100-ohm STP (100 m max.)100BASE-TX, 1000BASE-T:UTP CAT 5/5e (100 m max.)EIA/TIA-568 100-ohm STP (100 m max.)Media Interface ExchangeAuto MDI/MDI-X adjustment for all portsLED IndicatorsPer port: Link/Activity/SpeedPer device: PowerTransmission MethodStore-and-forwardDimensions280 x 180 x 44 mm (11.02 x 7.09 x 1.73 inches)
