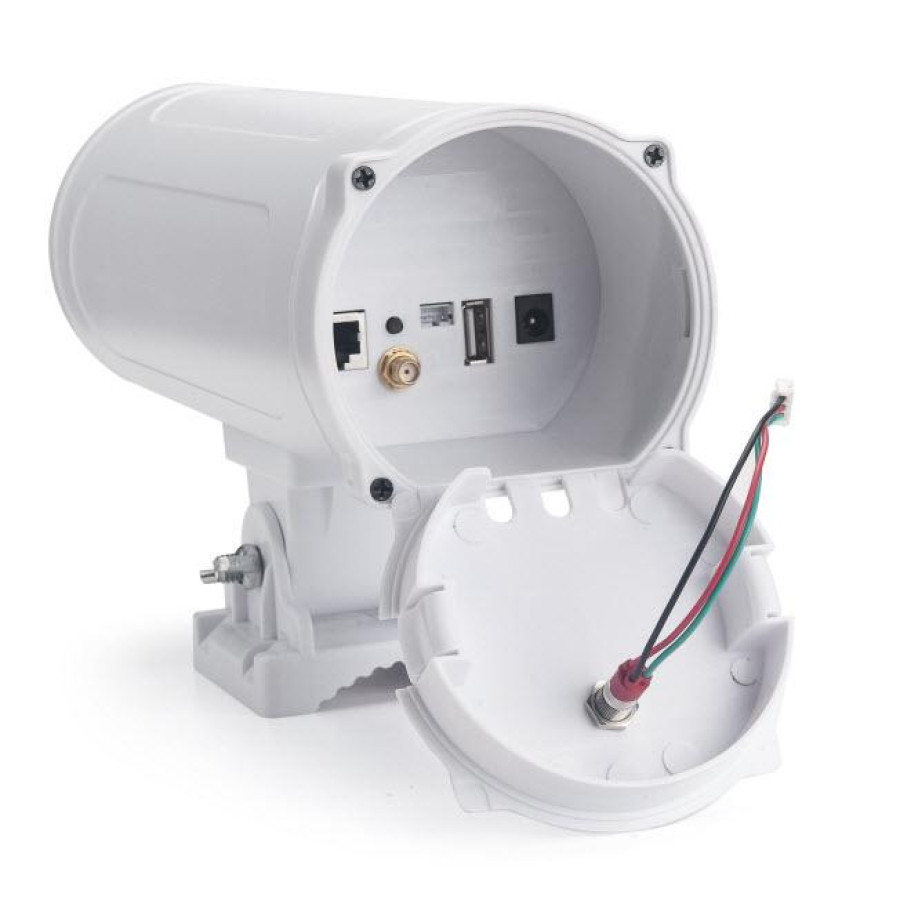

outdoor LoRaWAN Gateway
Spesifikasi Produk
| SKU | GMJ-COMP-202508250002 |
| Garansi | 3 bln |
| Dimensi | 12cm x 49cm x 19cm |
| Berat | 250g |
| Produk | Non-UMKM |
| Buatan | Luar Negri |
| KBKI | 00000 |
| Sertifikat TKDN | - |
| TKDN | 0.00% |
| BMP | 0.00% |
| TKDN + BMP | 0% |
Deskripsi
Feature: - Configuration via Web GUI, SSH via LAN or WiFi - Supports Semtech UDP Packet Forwarder - Support LoRaWAN Station Connection - Support LoRaWAN Protocol - Support Multi Platform LoRaWAN Server (TTN, ChirpStack, etc.) - LoRaWAN Packet Filtering - MQTTS support - Has 3 Connectivities: WiFi, Ethernet, and Cellular - Built-in GPS - IP65 - Lighting Protection General Specifications: - Power Input: 12 ~ 24VDC 2A - WiFi: 802.11 b/g/n - Ethernet: RJ45 Port - IEEE 802.3 af compliant PoE Port (DC 37 ~ 57V) - USB 2.0 Host Connector - Mini-PCIE Connector - Dimensions: 490 x 120 x 190mm LoRa Specifications: - LoRa Chip (Contentrator): SX1302 - Frequency Band: AS923 - 70dB CW Interfere Rejection at 1MHz Offset - Able to Operate with Negative SNR, CCR up to 9dB - Emulates 49 x LoRa Demodulators and 1x (G)FSK Demodulator - Dual Digital TX & RX Radio Front-end Interfaces - 10 Programmable Parallel Demodulation Paths - Dynamic Data-rate (DDR) Adaptation Sales Package: 1x DLOS8N LoRaWAN Gateway 1x Fiber Glass Antenna 1x Power Adapter Environmental Package
