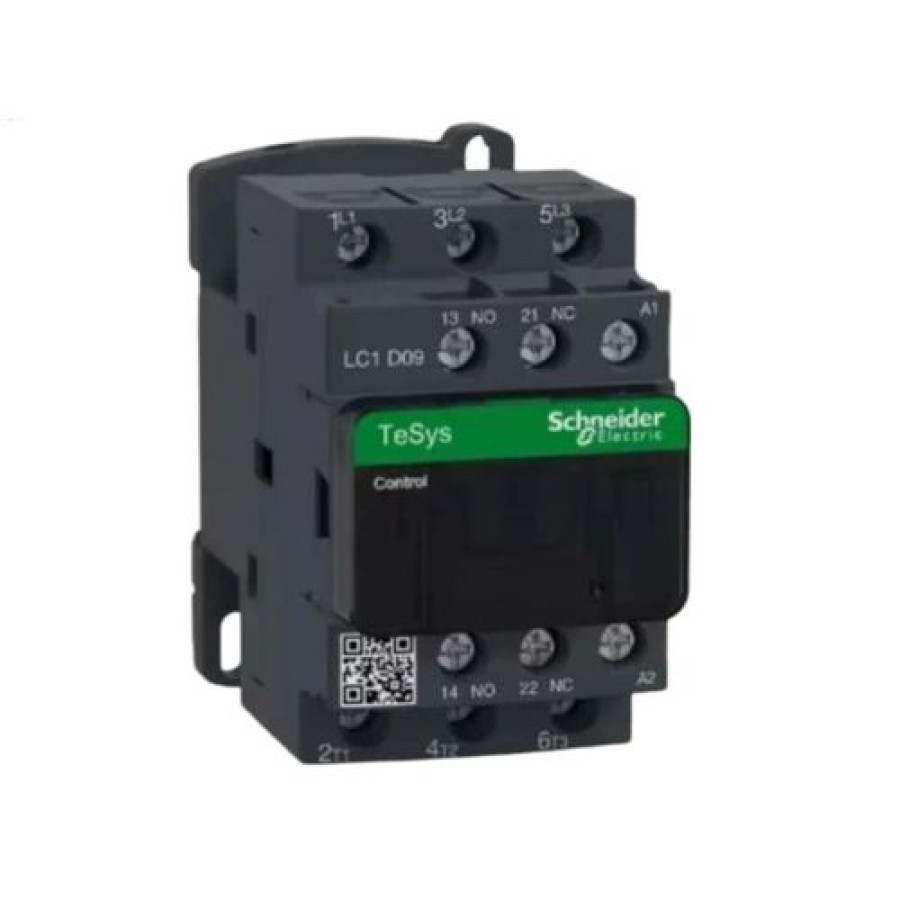

SCHNEIDER CONTACTOR LC1D09M7
Spesifikasi Produk
| SKU | |
| Garansi | - |
| Dimensi | 10cm x 10cm x 10cm |
| Berat | 100g |
| Produk | Non-UMKM |
| Buatan | Dalam Negri |
| KBKI | - |
| Sertifikat TKDN | |
| TKDN | 0.00% |
| BMP | 0.00% |
| TKDN + BMP | 0% |
Deskripsi
SCHNEIDER CONTACTOR LC1D09M7 220V "Spesifikasi: Brand: Schneider Electric Series: TeSys Deca Model: LC1D09M7 Jenis: Contactor Jumlah Kutub: 3P (3NO) Kategori aplikasi: AC-3, AC-3e, AC-1, AC-4 Rated operational current (Ie): 9A (AC-3/AC-3e @ ≤440V) Rated operational voltage (Ue): ≤690V AC / ≤300V DC Coil voltage (Uc): 220V AC 50/60Hz Auxiliary contacts: 1NO + 1NC (mirror & mechanically linked) Mounting: DIN-rail atau screw mounting Terminal type: Screw clamp terminals Motor power (AC-3): 22kW @ 220–230V 4kW @ 380–440V 55kW @ 500–690V Durability: Mekanik: hingga 15 juta siklus Elektrik: hingga 2 juta siklus (AC-3/AC-3e) Ukuran: 77 x 45 x 86 mm Berat bersih: 032 kg Sertifikasi: IEC, UL, CSA, CCC, EAC, Marine Lingkungan operasional: -40°C hingga 60°C Green Premium compliant: Ya (RoHS/REACh)"
