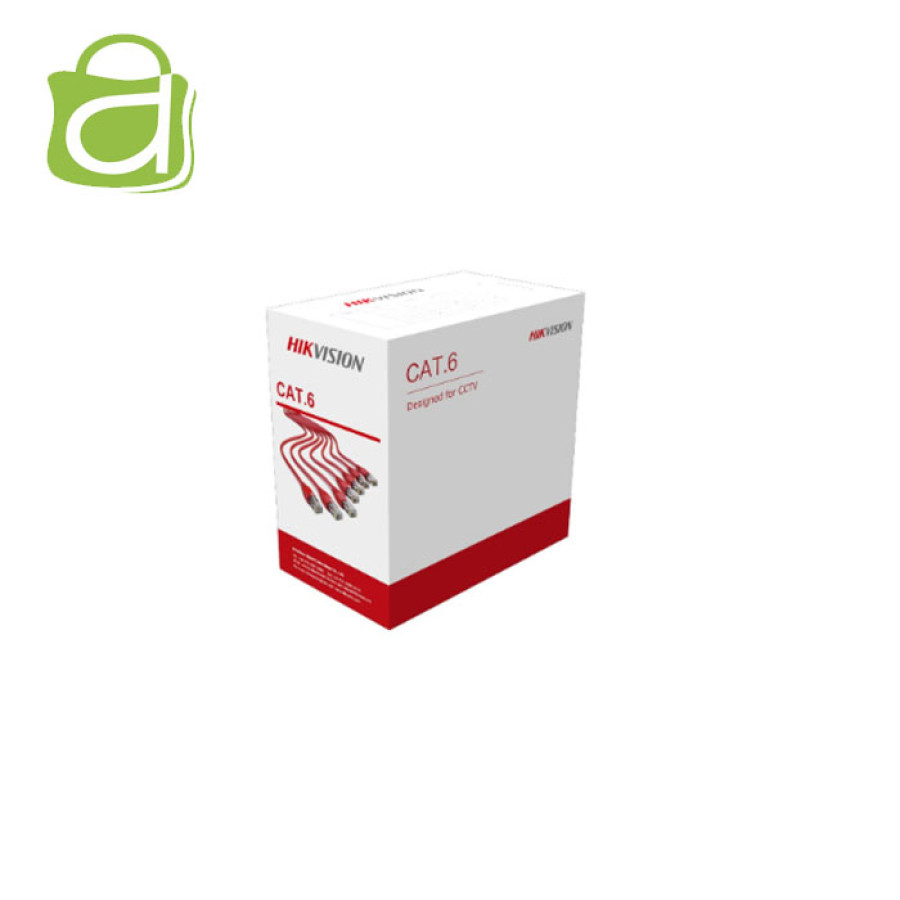

KABEL UTP / LAN CAT 6 DS-1LN6U-G
Spesifikasi Produk
| SKU | |
| Garansi | IYA |
| Dimensi | 50cm x 100cm x 100cm |
| Berat | 10kg |
| Produk | Non-UMKM |
| Buatan | Dalam Negri |
| KBKI | - |
| Sertifikat TKDN | |
| TKDN | 0.00% |
| BMP | 0.00% |
| TKDN + BMP | 0% |
Deskripsi
Category: U/UTP CAT6-4P-PVC-CM Test Standard: ISO/IEC11801、TIA-568-C.2 YD/T1019 Material: Solid-Bare Copper Copper content: 99.97% Nom.O.D.(mm): 0.530 up +0.005 down -0.005 Material : HDPE Diameter:0.95±0.03mm Sheath Thickness: 0.55±0.05 mm External O.D.: 5.8±0.4 mm Surface: Clean,Frap,Satiation Material: PVC(complies RoHS),CM Color: White Surface Printing Letter height: 3.0±0.3mm Color: Black Print error & Space: ≤±0.5%，1m General Core Color: 1 White- Blue /Blue 2 White-Orange /Orange 3 White-Green /Green 4 White- Brown /Brown Packing: Wooden Tray & Carton Carton dimension: Per request Packing length: 305±1.5m Rip-cord: Yes Drain wire: No Sheath Physical Properties: Before Aging Tensile Strength (Mpa) ≥13.5 Elongation(%) ≥150 Aging Period (℃×hrs) 100℃×24h×10d After Aging Tensile Strength(Mpa) ≥12.5 Elongation(%) ≥125 Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks Electrical Characteristics: 1.0-250.0MHz Impedance ((Ω) 100±15 1.0-250.0MHz Delay Skew (ns/100m) ≤45 DC Resistance (Ω/100m) max 9.38 DC Conductor Resistance Unbalance (%) max 5.0 Ambient temperature: -20℃ - 75℃
