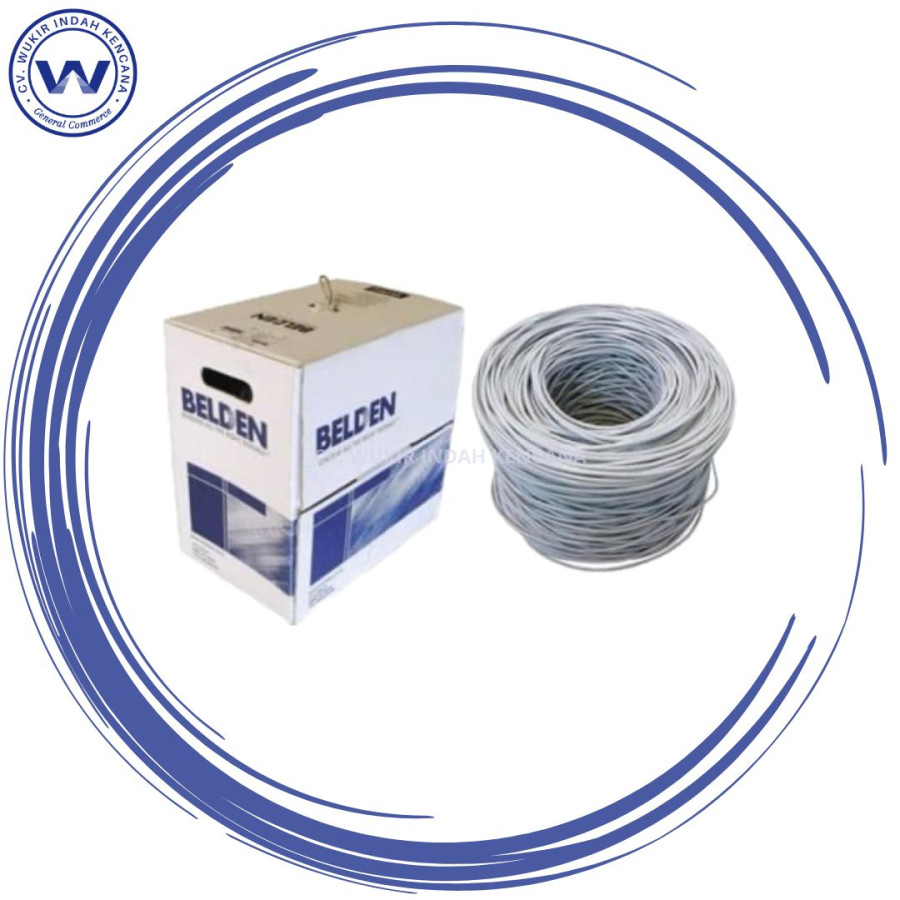

Belden Lan Cable CAT 6 (7814)
Spesifikasi Produk
| SKU | |
| Garansi | - |
| Dimensi | 0cm x 0cm x 0cm |
| Berat | 1kg |
| Produk | Non-UMKM |
| Buatan | Luar Negri |
| KBKI | - |
| Sertifikat TKDN | |
| TKDN | 0.00% |
| BMP | 0.00% |
| TKDN + BMP | 0% |
Deskripsi
24 AWG solid bare annealed copper conductors, non-plenum, Thermoplastic Polyolefin insulation, centre spline, rip cord, twisted pairs, see color code chart (below), PVC jacket (blue or gray). SUITABLE APPLICATIONS: Suitable Applications PHYSICAL CHARACTERISTICS: CONDUCTOR: Number of Pairs : 4 Total Number of Conductors : 8 AWG : 24 Stranding : Solid Conductor Material : Bare Annealed Copper INSULATION: Insulation Material : Thermoplastic Polyolefin Pair Color Code Chart : Number Color Number Color 1 White/Blue Rings & Blue 3 White/Green Rings & Green 2 White/Orange Rings & Orange 4 White/Brown Rings & Brown OUTER SHIELD : Outer Shield Material Unshielded OUTER JACKET: Outer Jacket Material : PVC Outer Jacket Ripcord : Yes NEC/(UL) Specification CM CEC/C(UL) Specification CM IEC Specification ISO 11801 TIA/EIA Specification 568-B.2-1 Category 6 Other Specification Category 6, UL verified to Category 6, ETL, ANSI/TIA/EIA-568B.2-1
