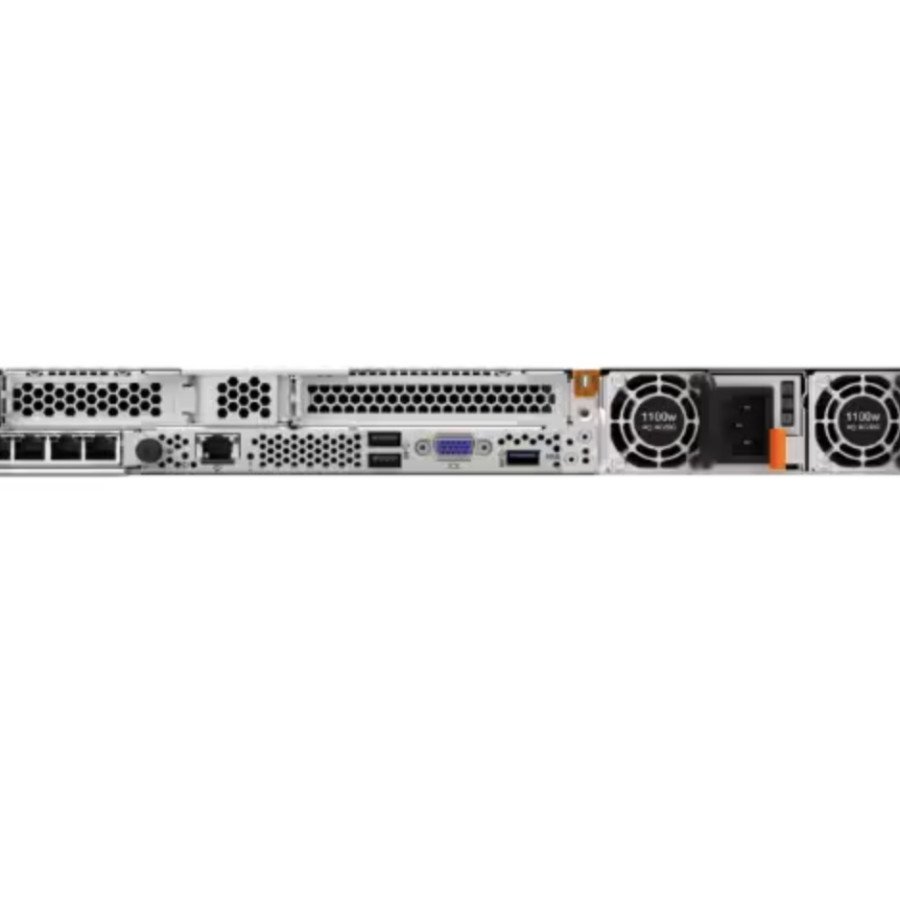

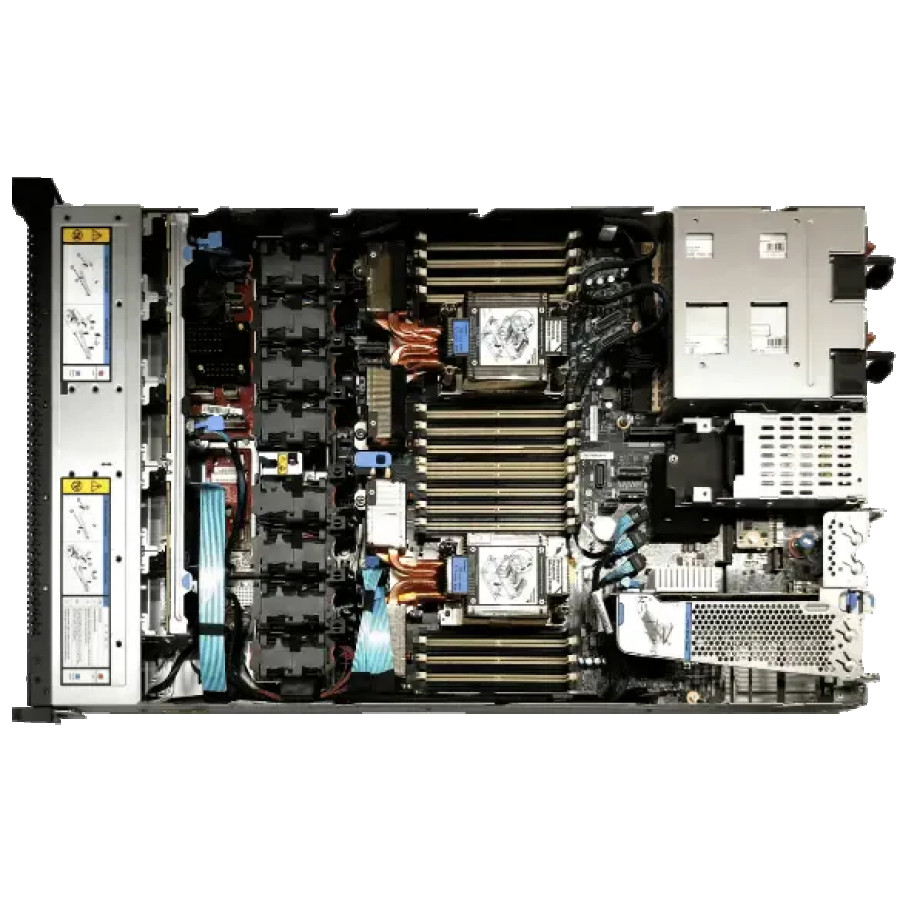

Lenovo ThinkSystem SR630 V3 Rack Server

Spesifikasi Produk

Deskripsi

Form Factor/Height 1U rack server Processor Up to 2x 5th Gen Intel® Xeon® Scalable processors, up to 64 cores and 350W TDP Drive Bays Up to 4x 3.5” or 12x 2.5” or 16x EDSFF E1.S drives Front: up to 4x 3.5” / 10x 2.5” /16x EDSFF E1.short hot swap drives Rear: 2x 2.5”; 7mm SATA/NVMe hot-swap boot drives, support RAID Internal 2x M.2 SATA/NVMe boot drives, support RAID Direct NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10) Memory Supports up to 32x TruDDR5 3DS/RDIMMs Expansion Slots Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn't occupy a standard PCIe slot GPUs Up to 3x single-width 75W GPUs Network Interface LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters Ports Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional) Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional) HBA/RAID Support SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters. Power Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum Systems Management Lenovo XClarity Controller OSes Supported Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information. Limited Warranty 1-year replaceable unit
