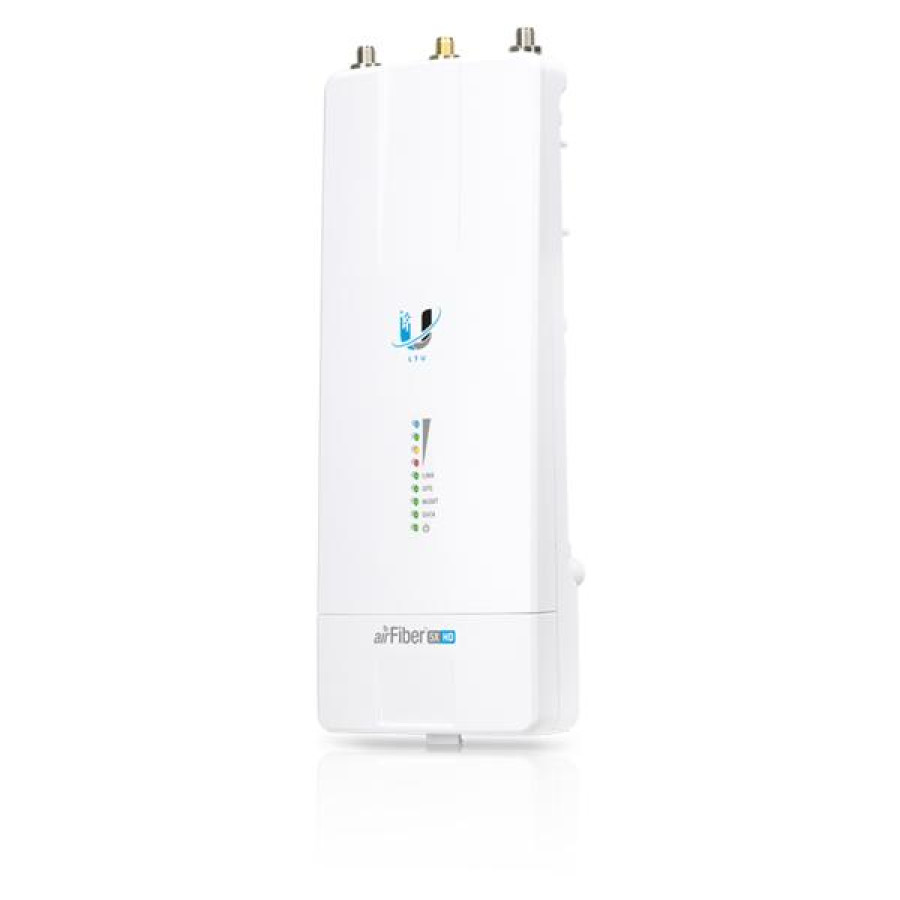

Ubiquiti Airfiber AF5XHD

Spesifikasi Produk

Deskripsi

Spesifikasi: - Dimensions 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") - Weight 0.35 kg (12.3 oz) - RF Connectors (2) RP-SMA Weatherproof (CH0, CH1) - (1) SMA Weatherproof (GPS) - GPS Antenna External, Magnetic Base - Power Supply 24V, 1A Gigabit PoE Adapter (Included) - Power Method Passive Power over Ethernet - Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) - Max. Power Consumption 6-12W1 - Supported Voltage Range +18 to +54VDC2 - Mounting airFiber X Mount (Rocket Mount Compatible) - GPS Pole Mount (Included) - Operating Temperature -40 to 55 C (-40 to 131 F) - Weatherproofing IP673 - Certifications CE, FCC, IC - Networking Interface - Data Port (1) 10/100/1000 Ethernet Port - Management Port (1) 10/100/1000 Ethernet Port - Bluetooth v4.0 System - Processor airFiber LTU IC - Maximum Throughput 1.34 Gbps4, 5 - Maximum Range 100 km4 - Packets per Second 2+ Million6 - Latency 1.5 ms - 3.5 ms7 - Encryption AES-256 - OS airOS LTU - Wireless Modes Master/Slave 1. Varies with firmware load and operational mode. 2. Full range depends on Ethernet cable length. 3. After installation of IP67 upgrade kit (included). 4. Throughput and range values may vary depending on the environmental conditions. 5. Assuming 4096QAM (available with future firmware upgrade). 6. Hardware bridge mode only. 7. Based on 2 ms frame
